X72A2A

X72A2A
Specifications Quick Start Guide Manual Firmware
X72A2A X72A2A.png
Series: Pro
Compatible Video: HDCVI/AHD/TVI/CVBS (Auto-detect)
HD-CVI/Analog Channels: 8
IP Channels: 8 + 8
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
HD-CVI/Analog Recording
Resolutions:
8 MP at 7 fps;
6 MP at 10 fps, 5 MP at 12 fps, 4 MP or 3 MP at 15 fps;
4 M-N, 1080p, 720p, 960H, D1, CIF or QCIF at 30 fps
IP Recording Resolutions: Up to 8 MP
Input Bandwidth: 64 Mbps
Video Output: One (1) HDMI (3840 x 2160)
One (1) VGA (1920 x 1080)
HDD: Two (2) SATA Ports, up to 10 TB capacity for each disk
eSATA: 0
Audio In: 4 RCA
Audio Out: 1 RCA
Alarm In: 8
Alarm Out: 3
Network: 1 Gigabit Port
USB: One (1) USB 2.0 Port and One (1) USB 3.0 Port
Power: 12 VDC, 4 A, 50/60 Hz
<10W (No HDD)
IVS: Yes (All Analog Channels, when IP Channels Disabled)
POS: Yes
Spot Out/ Video Matrix: Yes, HDMI or VGA, configurable

Features

  • 4K at 7 fps Recording Resolution on All HDCVI Channels
  • Dual-stream Video Recording
  • Smart H.265+ and H.264 Dual Codec
  • Auto-detection and Auto-configuration of Video Inputs
  • 8 + 8 IP Camera Channels, each channel up to 8 MP
  • Maximum 64 Mbps Incoming Bandwidth
  • Smart Search and Intelligent Video System
  • Spot Output
  • Five-year Warranty (for products sold through an authorized Dahua dealer)

Compression

Intelligent Features

Interfaces

SystemUI New WebUI New SmartPSS DSS Express S
SystemUI New WebUI New SmartPSS DSS Express S

Product Images

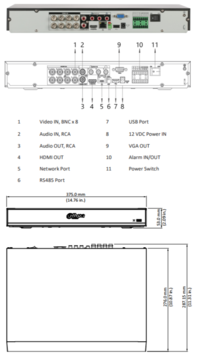

Product Box Box Contents Front Panel Back Panel Reset Button CAD
Product Box Box Contents Front Panel Back Panel Reset CAD


Specifications
