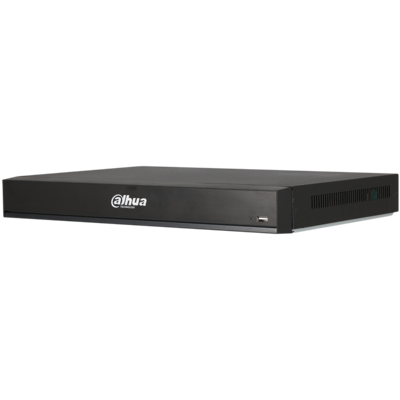

X72B2A



float

Features

  • 4K at 15 fps Recording Resolution on All HDCVI Channels
  • Dual-stream Video Recording
  • Smart H.265+ and Smart H.264+ Dual Codec
  • Auto-detection and Auto-configuration of Video Inputs
  • 8 + 8 IP Camera Channels, each channel up to 8 MP
  • Maximum 64 Mbps Incoming Bandwidth
  • Smart Search and Intelligent Video System
  • Internet of Things (IoT) and Point of Sale (POS) Support
  • Spot Output
  • Five-year Warranty (for products sold through an authorized Dahua dealer)

Notes

  • IVS rules only active when additional IP Channels is not active:

Tripwire/Intrusion-> All channels
Abandoned/Missing Object-> Channels 1-4

  • IVS rules deactivate when Smart Codec is On

Images and WITB


Firmware

Firmware Update Instructions

Firmware Update Download

  • Coming Soon

Intelligent Features

Specifications

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Interface
Analog Camera Input Eight (8) Channels, BNC
HDCVI 8 MP, 6 MP, 5 MP, 4 MP, 1080p at 30 fps,

720p at 60 fps, 720p at 30 fps

AHD 5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps
TVI 5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps
CVBS NTSC
IP Camera Input 8+8 Channels, each channel up to 8 MP
Audio Input: Four (4) Channels, RCA

Output: One (1) Channel, RCA

Two-way Talk Audio Input Channel 1 In/ Audio Output, RCA
Recording
Compression Smart H.265+, H.265, Smart H.264+, H.264
Recording Resolution 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960H, D1,

CIF

Record Rate Main Stream 8 MP at 15 fps;

6 MP or 5 MP at 20 fps;
4 MP, 3 MP, 1080p, 720p, 960H, D1, CIF at 30 fps

Sub Stream 960H at 15 fps;

D1 or CIF at 30 fps

Maximum Incoming Bandwidth 64 Mbps
Bit Rate 32 Kbps to 8192 Kbps per Channel
Record Mode Manual, Schedule (Regular, Continuous),

MD (Video Detection: Motion Detection, Video Loss,
Tampering), Alarm, Stop

Record Interval 1 to 60 minutes (default: 60 minutes),

Pre-record: 1 to 30 s,
Post-record: 10 to 300 s

Audio Compression AAC (first channel only), G.711a, G.711u, PCM
Audio Sample Rate 8 KHz, 16 bits per Channel
Audio Bit Rate 64 Kbps per Channel
Display
Interface One (1) HDMI (3840 x 2160)

One (1) VGA (1920 x 1080)

Spot Output HDMI or VGA, configurable
Native Output

Resolution

HDMI 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024,

1280 x 720, 1024 x 768

VGA 1920 x 1080, 1280 x 1024, 1280 x 720
Maximum Decoding Four (4) Channels of 8 MP at 7 fps

Four (4) Channels of 6 MP at 10 fps
Four (4) Channels of 5 MP at 12 fps
Eight (8) Channels of 4 MP/3 MP at 15 fps
Eight (8) Channels of 1080p, 720p, 960H at 30 fps

Multi-screen Display IP extension mode disabled: 1/4/8/9

IP extension mode enabled: 1/4/8/9/16

On-sceen Display Camera Title, Time, Video Loss, Camera Lock,

Motion Detection, Recording

Network
Interface One (1) RJ-45 (1000 Mbps) Port
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP,

DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,

P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS)

Max. User Access 128 Users
Mobile Operating

System

IOS, Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,

Buzzer and Screen Tips

Video Detection Motion Detection, MD Zones: 396 (22 × 18),

Video Loss, Tampering and Diagnosis

Alarm Input Eight (8) Channels
Relay Output Three (3) Channels
Playback and Backup
Playback 1/4/9
Search Mode Time/Date, Alarm, MD and Exact Search

(accurate to 1 second)

Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File,

Previous File, Next Camera, Previous Camera, Full Screen,

Repeat, Shuffle, Backup Selection, and Digital Zoom

Backup Mode USB Device/Network
Storage
Internal HDD Two (2) SATA Ports, up to 10 TB capacity for each disk
Auxiliary Interface
USB One (1) USB 2.0 Port and One (1) USB 3.0 Port
RS485 One (1) Port for PTZ Control
Electrical
Power Supply 12 VDC, 5 A
Power Consumption < 15 W, without HDD
Construction
Dimensions
HDCVI DVR 1U, 375.0 mm x 287.15 mm x 53.0 mm

(14.80 in. x 11.31 in. x 2.09 in.)

with PFH101

Rack Mount Tray

482.6 mm x 287.15 mm x 53.0 mm

(19.0 in. x 11.31 in. x 2.09 in.)

Net Weight 1.70 kg (3.70 lb)
Gross Weight 3.10 kg (6.83 lb)
Installation Desktop or Rack-mount
