X54A5L

X54A5L
Specifications Quick Start Guide Manual Firmware

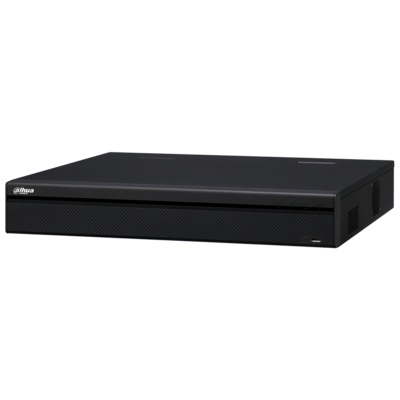

X54A5L X54A5L.png
Series: Pro
Compatible Video: HDCVI/AHD/TVI/CVBS (Auto-detect)
HD-CVI/Analog Channels: 32
IP Channels: 32
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
HD-CVI/Analog Recording
Resolutions:
Channel 1:
• 5 M-N (1296 x 1944) at 20 fps
Channels 2 to 32:
• 4 M-N (1280 x 1440) at 7 fps
OR
Channels 1 and 2:
• 5 M-N (1296 x 1944) at 10 fps
Channels 3 to 32:
• 4 M-N (1280 x 1440) at 15 fps
IP Recording Resolutions: Up to 8 MP
Input Bandwidth: 128 Mbps
Video Output: Two (2) HDMI, One (1) VGA, One (1) BNC
HDD: Four (4) SATA Ports, up to 10 TB capacity for each disk
eSATA: 1
Audio In: 4 BNC
Audio Out: 1 BNC
Alarm In: 16
Alarm Out: 6
Network: 1 Gigabit Port
USB: One (1) USB 2.0 Port and Two (2) USB 3.0 Ports
Power: 100 VAC to 240 VAC, 50/60 Hz
<35W (No HDD)
IVS: Yes (16 Analog Channels, if IP Channels are Disabled)
POS: No
Spot Out/ Video Matrix: Yes, HDMI 2

Features

  • Embedded Processor
  • Smart H.265+ and Smart H.264+ Dual Codec
  • Dual-stream Recording
  • 5 M-N (1296 x 1944) at 10 fps Maximum Recording Resolution
  • 32 HDCVI, AHD, TVI, CVBS or IP Channels
  • Up to 8 MP per IP Channel
  • 128 Mbps Incoming Bandwidth
  • Built-in Smart Search
  • Spot Monitor Output on HDMI 2
  • Intelligent Video System
  • Four (4) SATA HDD Ports, up to 10 TB per Hard Disk
  • Five-year Warranty (for products sold through an authorized Dahua dealer)
