X58A5S

X58A5S
Specifications Quick Start Guide Manual Firmware

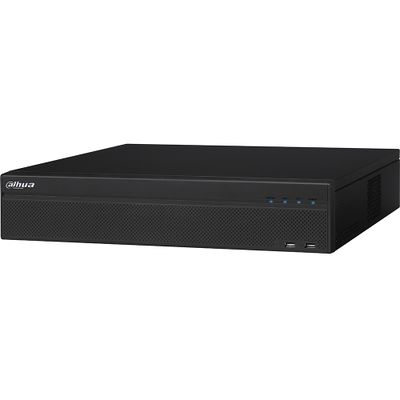

X58A5S X58A5S.jpg
Series: Pro
Compatible Video: HDCVI/AHD/TVI/CVBS (Auto-detect)
HD-CVI/Analog Channels: 32
IP Channels: 32
Video Compression: H.264+ / H.264
HD-CVI/Analog Recording
Resolutions:
Channels 1 and 2:
• 5 M-N (1296 x 1944) at 20 fps
Channels 3 to 32:
• 4 M-N (1280 x 1440) at 30 fps
IP Recording Resolutions: Up to 8 MP
Input Bandwidth: 128 Mbps
Video Output: Two (2) HDMI
One (1) VGA
One (1) BNC
HDD: Eight (8) SATA Ports, up to 10 TB capacity for each disk
eSATA: 1
Audio In: 16 BNC
Audio Out: 1 BNC
Alarm In: 16
Alarm Out: 6
Network: 2 Gigabit Ports
USB: Two (2) USB 2.0 Ports and Two (2) USB 3.0 Ports
Power: 100 VAC to 240 VAC, 50/60 Hz
<35W (No HDD)
IVS: Yes (16 Analog Channels, when IP Channels are Disabled)
POS: No
Spot Out/ Video Matrix: Yes, HDMI 2

Features

  • Embedded Intel Multi-core Processor
  • Dual-stream Video Recording
  • Smart H.264+ Video Compression (Smart H.265+ IP Camera Compatibility)
  • 5 M-N (1296 x 1944) at 20 fps Maximum Recording Resolution
  • 32 HDCVI, AHD, TVI, CVBS or IP Channels
  • Up to 8 MP per IP Channel
  • 128 Mbps Incoming Bandwidth
  • Built-in Smart Search
  • Spot Output on HDMI 2 Output
  • Intelligent Video System
  • Eight (8) SATA HDD Ports, up to 10 TB per Hard Disk Drive
  • Five-year Warranty (for products sold through an authorized Dahua dealer)
