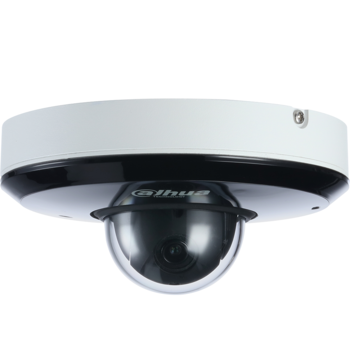

1A404XBNR 1A404XBNR.png
Series: Lite
Body: PTZ
Image Sensor: 1/2.8-in. STARVIS™ CMOS
Resolution: 2 MP, 1920(H) x 1080(V)
Angle of View: Horizontal: 105.6° to 35.2°
Lens Type: Varifocal
Focal Length: 2.7 mm to 8.1 mm
Optical Zoom: 3x
Min. Illumination: Color: 0.005 lux at F1.8
0 lux at F1.8 (IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 15 m (49.20 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression: G.711a, G.711Mu, AAC, G.726
Frame Rate: 1080p or 720p at 30 fps
Multi-Streaming: 3 Streams
Pan/Tilt Range: Pan: 0° to 355°
Tilt: 5° to 90°
Preset Speed: 300 Presets
Pan: 80° /s
Tilt: 40° /s
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object
Audio In: One (1) Channel plus a Built-in Microphone
Audio Out: One (1) Channel
Memory Slot: Micro SD Slot, maximum 256 GB
Alarm In: -
Alarm Out: -
IP Rating: 66
IK Rating: 08
Operating Temp: –30° C to +60° C (–22° F to +140° F),
Less than 95% RH
Power: 12 VDC, 1.5 A or PoE (IEEE 802.3af)
< 10.5 W
ePoE: No


• 1/2.8-in. 4 MP STARVIS™ CMOS Sensor

• 4x Optical Zoom

• Starlight Technology for Low Light Sensitivity

• Triple-stream Encoding

• Smart H.265+ and Smart H.264+ Dual Codecs

• 4 MP at 30 fps Maximum Resolution

• True Wide Dynamic Range (120 dB)

• Analytics+ Function – Perimeter Protection, People Counting, Smart Motion Detection, and Face Detection

• Maximum IR Distance 15 m (49 ft)

• IP66 Ingress Protection and IK08 Vandal Resistance

• Five-year Warranty (for products sold through authorized Dahua Dealers)
