N51BD22/N51BD23

N51BD22/N51BD23
Specifications Quick Start Guide Manual Firmware
N51BD22/N51BD23 N51BD22.png
Series: Pro
Body: Bullet
Image Sensor: 1/2.7-in. 5 MP Progressive-scan CMOS
Resolution: 5 MP, 2592(H) x 1944(V)
Angle of View: Horizontal: 96°
Vertical: 70°
Lens Type: Fixed
Focal Length: N51BD22 - 2.8 mm
N51BD23 - 3.6mm
Min. Illumination: Color: 0.009 lux at F1.6 (1/3 s,30 IRE)
Color: 0.09 lux at F1.6 (1/30 s, 30 IRE)
0 lux at F1.6 with IR on
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 30.0 m (98.43 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression: -
Frame Rate: 5 MP at 15 fps or 3 MP at 30 fps
Multi-Streaming: 2 Streams
IVS: Motion, Tripwire, Intrusion
ONVIF: Yes
Audio In: 0
Audio Out: 0
Memory Slot: -
Alarm In: 0
Alarm Out: 0
IP Rating: 67
IK Rating: -
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 95% RH
Power: 12 VDC ± 10% , 400 mA maximum; or
PoE (802.3af Class 0)
< 4.85 W
ePoE: No

Features

  • 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
  • Dual Stream Encoding with Smart H. 265+ and H.264 Dual Codecs
  • 5 MP at 20 fps or 3 MP at 30 fps, Maximum Resolution
  • Starlight Technology for Ultra-low Light Sensitivity
  • 2.8 mm or 3.6 mm Fixed Lens Options
  • True WDR (120 dB) and Day/Night (ICR)
  • Maximum IR LED Length 30 m (98 ft) with Smart IR
  • Intelligent Video System
  • IP67 Ingress Protection
  • PoE Support
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Firmware

Firmware Update Instructions

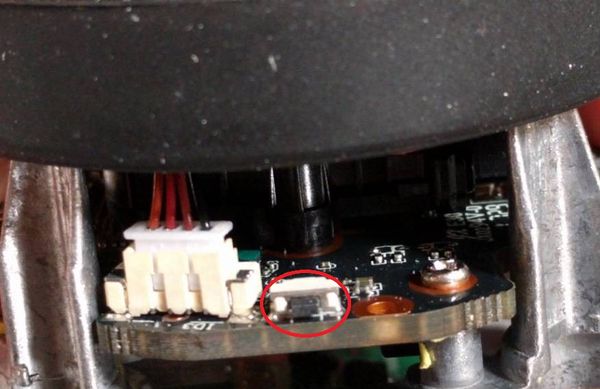

Reset Button

N51BD22 Reset.jpg
