N52BF3Z

N52BF3Z
Specifications Quick Start Guide Manual Firmware
N52BF3Z N52BF3Z.png
Series: Pro
Body: Bullet
Image Sensor: 1/2.7-in. 5 MP Progressive-scan CMOS
Resolution: 5 MP, 2592(H) x 1944(V)
Angle of View: Horizontal: 27° to 95°
Vertical: 20° to 70°
Lens Type: Motorized
Focal Length: 2.7 mm to 13.5 mm
Min. Illumination: Color: 0.008 lux at F1.6 (1/3 s, 30 IRE)
Color: 0.08 lux at F1.6 (1/30 s, 30 IRE)
0 lux at F1.6 with IR on
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 60.0 m (196.85 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression: -
Frame Rate: 5 MP at 15 fps or 3 MP at 30 fps
Multi-Streaming: 2 Streams
IVS: Motion, Tripwire, Intrusion
ONVIF: Yes
Audio In: 0
Audio Out: 0
Memory Slot: Micro SD Slot, maximum 128 GB
Alarm In: 0
Alarm Out: 0
IP Rating: 67
IK Rating: -
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 95% RH
Power: 12 VDC ± 10%, 1.05 A maximum; or
PoE (802.3af Class 0)
< 5.5 W
ePoE: No

EOL: End of Life

EOL Date: 6/19/2020

Suggested Replacement

N53AF5Z

Features

  • 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
  • Dual Stream Encoding with Smart H. 265+ and H.264 Dual Codecs
  • 5 MP at 20 fps or 3 MP at 30 fps, Maximum Resolution
  • Starlight Technology for Ultra-low Light Sensitivity
  • 2.7 mm to 13.5 mm Motorized Zoom Lens
  • True WDR (120 dB) and Day/Night (ICR)
  • Maximum IR LED Length 60 m (197 ft) with Smart IR
  • Intelligent Video System¹
  • ArcticPro Series Camera - Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • PoE Support
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Firmware Update Instructions

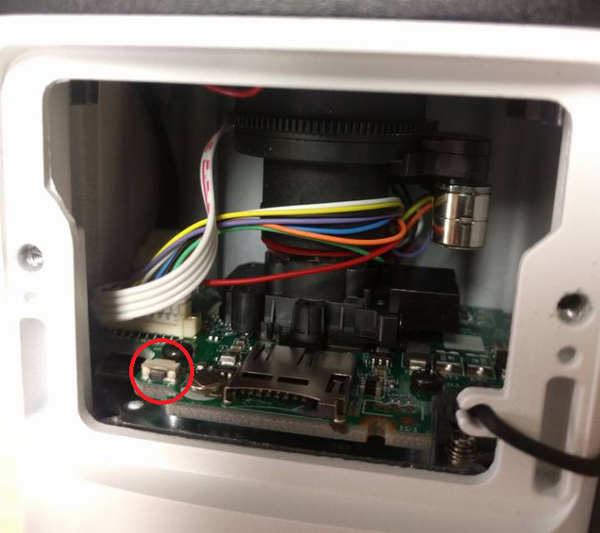

Reset Button

N52BF3Z reset.png

Specifications
