N53AF5Z

N53AF5Z
Specifications Quick Start Guide Manual Firmware

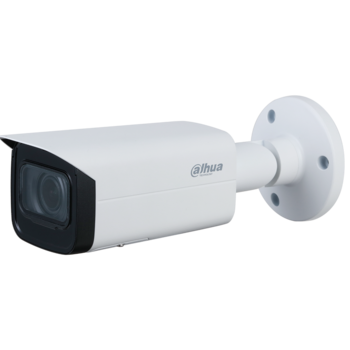

N53AF5Z N53AF5Z web.png
Series: Lite
Body: Bullet
Image Sensor: 1/2.7-in. 5 MP CMOS
Resolution: 5 MP, 2592(H) x 1944(V)
Angle of View: Horizontal: 99° to 26°
Vertical: 72° to 20°
Diagonal: 133° to 33°
Lens Type: Motorized Vari-focal
Focal Length: 2.7 mm to 13.5 mm
Min. Illumination: Color: 0.005 lux at F1.5
0 lux at F1.5 (IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 60.0 m (196.85 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264,
H.264B, H.264H, MJPEG (Sub Stream only)
Audio Compression: G.711a, G.711Mu, AAC, G.726
Frame Rate: 5 MP (2592 x 1944) at 20 fps or
4 MP (2688 x 1520) at 30 fps
Multi-Streaming: 3 Streams
IVS: Motion, Scene Change
Analytics+: Perimeter Protection,
Smart Motion Detection
ONVIF: Yes
Audio In: One (1) Channel, RCA
Audio Out: One (1) Channel, RCA
Memory Slot: Micro SD Slot, maximum 256 GB
Alarm In: One (1) Channel (5 mA, 3 to 5 VDC)
Alarm Out: One (1) Channel (300 mA, 12 VDC)
IP Rating: 67
IK Rating: -
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 95% RH
Power: 12 VDC or PoE (IEEE 802.3af, Class 0)
< 9.8 W
ePoE: No

Features

  • 1/2.7 in. 5 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 5 MP (2592 x 1944) at 20 fps
  • 2.7 mm to 13.5 mm Motorized Vari-focal Lens
  • Starlight Technology for Low-light Applications
  • Analytics+ Function – Perimeter Protection
  • Smart Motion Detection for Improved Alarm Accuracy
  • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
  • Maximum IR LED Distance 60 m (196.85 ft)
  • ArcticPro Series Camera - Operational down to –40° C (–40° F)
  • IP67 Ingress Protection
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Product Images

Product Box Box Contents Wire Harness Reset Button SD-Card Slot
Product Box Box Contents Wire Harness Reset Button SD-Card Slot
