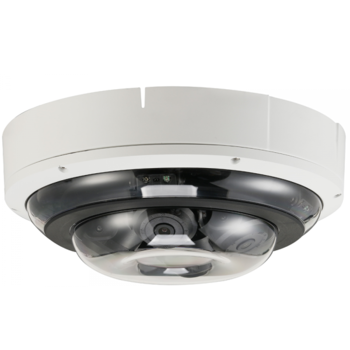

DH-IPC-PDBW5831N-B360

DH-IPC-PDBW5831N-B360


float

float

float

Features

  • Four (4) Independent 1/2.8-in 2 MP STARVIS™ CMOS Sensors
  • Dual-strem Encoding per Channel
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 2 MP at 30 fps Maximum Resolution per Sensor
  • Four (4) 2.7 mm to 12 mm Motorized Optical Zoom Lenses
  • Starlight Technology for Low Light Sensitivity
  • Ultra Wide Dynamic Range (Channel 1) and True Day/Night (ICR)
  • Intelligent Video System
  • Maximum IR LED Distance 30 m (98 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty (for products sold through an authorized Dahua Dealer

Compression

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download


Reset Button and SD

Reset Button

PDBW5831N-B360 REST.JPG

SD Card

PDBW5831 SD CARD.jpg

Video Instructions

Setup to a NVR

WDR

Zoom Feature

Set to Smart PSS

Multiflex to XVR

Specification

Camera
Image Sensor Four (4) 1/2.8-in. 2 MP STARVIS™ CMOS
Effective Pixels 1920(H) x 1080(V), per sensor
RAM/ROM 1024 MB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100000 s
Minimum Illumination Color: 0.005 lux at F1.8 (1/3 s, 30 IRE)

Color: 0.06 lux at F1.8 (1/30 s, 30 IRE)

0 lux at F1.8 (IR on)

S/N Ratio More than 50 dB
IR Distance Distance up to 30 m (98.43 ft)
IR On/Off Control Auto, Manual
IR LEDs Eight (8) total LEDs; Two (2) LEDs per sensor
Lens
Lens Type Motorized
Mount Type Board-in
Focal Length Four (4) 2.7 mm to 12 mm
Maximum Aperture F1.8
Angle of View Horizontal: 105° to 44°

Vertical: 54° to 25°

Optical Zoom 4x
Focus Control Motorized
Close Focus Distance 0.20 m (0.66 ft)
DORI Distances²
Detect Observe Recognize Identify
Wide 45 m (148 ft) 18 m (59 ft) 9 m (30 ft) 4.5 m (15 ft)
Tele 99 m (325 ft) 40 m (131 ft) 20 m (66 ft) 10 m (33 ft)
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream)
Streaming Capability Two (2) Streams per sensor
Resolution 1080P (1920 x 1080),

1.3 MP (1280 X 960),

720P (1280 x 720),

D1 (704 x 480),

CIF (352 x 240)

Frame Rate Main Stream: 1080P at 30 fps

Sub Stream: D1 at 30 fps

Bit Rate Control CBR, VBR
Bit Rate H.264: 32 to 8192 Kbps

H.265: 12 to 6144 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, Ultra WDR (140 dB, channel 1 only), DWDR
White Balance Auto, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zone, Rectangle)
Region of Interest Off, On (4 Zone)
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Area, Rectangle)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (100/1000 Base-T)
Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP,

DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP

Interoperability ONVIF, CGI
Streaming Method Unicast / Multicast
Maximum User Access 10 Users /20 Users
Edge Storage Network Attached Storage (NAS)

Local PC for instant recording

Micro SD Card Slot, 256 GB maximum

Web Viewer IE
Management Software SmartPSS², DSS, DMSS
Mobile Operating System IOS, Android
Certifications
Safety UL 60950-1
Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
Interface
Audio Input: One (1) Channel

Output: One (1) Channel

RS485 One (1) Port
Alarm Input: One (1) Channel (5 mA, 5 VDC)

Output: One (1) Channel (300 mA, 12 V)

Electrical
Power Supply 24 VAC, 3 A or PoE+ (IEEE802.3at Class 4)
Power Consumption 24 VAC: 9.9 W, 31.2 W with IR on

PoE: 10.6 W, 23.8 W with IR on

Environmental
Operating Temperature –30° C to +60° C (–22° F to +140° F)

Less than 95% RH

Storage Temperature –30° C to +60° C (–22° F to +140° F)

Less than 95% RH

Ingress Protection IP67
Vandal Resistance IK10
