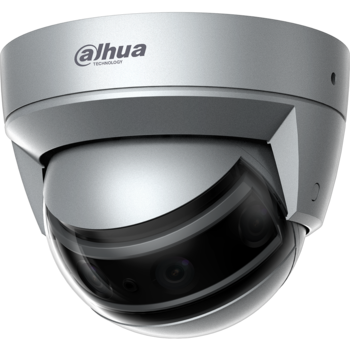

DH-IPC-PDBW8840N-A180 PDBW8840 image web.png
Series: Ultra
Body: Panoramic Dome
Image Sensor: Four (4) 1/2.8-in. 2 MP STARVIS™ CMOS Sensors
Resolution: 4096(H) x 1800(V)
Angle of View: Horizontal: 180°
Vertical: 80°
Lens Type: Fixed
Focal Length: 3.0 mm
Min. Illumination: Color: 0.007 lux at F2.0 (1/3 s, 30 IRE)
Color: 0.05 lux at F2.0 (1/30 s, 30 IRE)
0 lux at F2.0 with IR on
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 30.0 m (98.43 ft)
WDR: Digital WDR
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Audio Compression: G.711a, G.711Mu, AAC, G.726
Frame Rate: 4096 x 1800 at 25 fps
Multi-Streaming: 3 Streams
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object,
Heat Map, E-PTZ
Audio In: One (1) Channel, RCA
Audio Out: One (1) Channel, RCA
Memory Slot: Micro SD Slot, maximum 128 GB
Alarm In: Two (2) Channels (5 VDC, 5 mA)
Alarm Out: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A)
IP Rating: 67
IK Rating: 10
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 95% RH
Power: 24 VAC or PoE+ (802.3at Class 4), 1.5 A
< 25.5 W
ePoE: No


  • Four (4) 1/2.8-in. 2 MP Progressive Scan STARVIS™ CMOS Sensors
  • Triple-stream Encoding with Smart H.265+ Compression
  • Maximum Resolution: 4096 x 1800 at 30 fps
  • Starlight Technology for Ultra-low Light Sensitivity
  • Maximum IR LED Distance 30 m (98 ft)
  • ArcticPro Series Camera - Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty


Intelligent Features


WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Body Style with Compatible Accessories

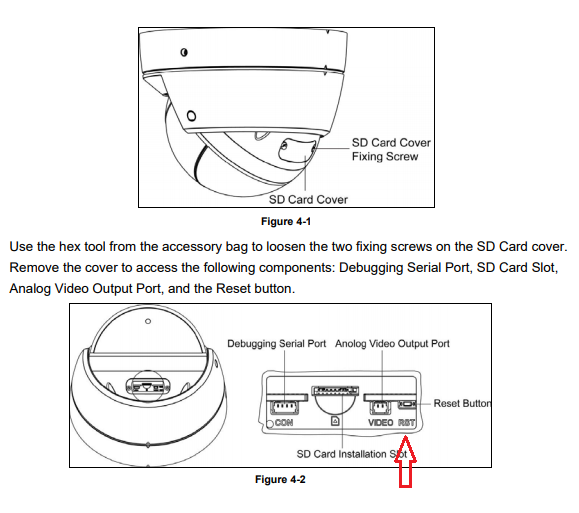

Reset Button


Product Images

Box Contents Wire Harness Reset Button SD-Card Slot
Box Contents Wire Harness Reset Button SD-Card Slot
