DH-IPC-HDBW4231FN-E2-M

Model
Specifications Quick Start Guide Manual Firmware

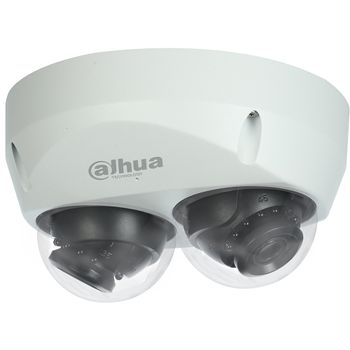

DH-IPC-HDBW4231FN-E2-M DH-IPC-HDBW4231FN-E2-M.jpg
Series: Pro
Body: Dual-sensor
Image Sensor: Two (2) 1/2.8-in. 2 MP STARVIS™ CMOS
Resolution: 2 MP, 1920(H) x 1080(V) (Per Sensor)
Angle of View: Horizontal: 110°
Vertical: 60°
Lens Type: Fixed
Focal Length: 2.8 mm
Min. Illumination: Color: 0.009 lux at F2.0 (1/3 s, 30 IRE)
Color: 0.07 lux at F2.0 (1/30 s, 30 IRE)
0 lux at F2.0 with IR on
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 20.0 m (65.62 ft)
WDR: 120dB (Channel 1 only)
Video Compression: H.265, H.264H, MJPEG (Sub Stream)
Audio Compression: G.711a, G.711Mu, AAC, G.726
Frame Rate: Channel 1: 1080p at 30 fps
Channel 2: 1080p at 30 fps
Multi-Streaming: Two (2) Streams per Sensor
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object,
Facial Detection
ONVIF: Yes
Audio In: 1 (Built-in Microphone)
Audio Out: 0
Memory Slot: Micro SD Slot, maximum 128 GB
Alarm In: 0
Alarm Out: 0
IP Rating: 67
IK Rating: 10
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 95% RH
Power: 12 VDC or PoE (IEEE 802.3af, Class 0)
< 6.5 W
ePoE: No

Features

  • Two (2) Independent 1/2.8-in. 2 MP Progressive Scan STARVIS™ CMOS Sensors
  • Dual-stream Encoding per each Channel
  • H.265 and H.264 Dual Codecs
  • 2 MP at 30 fps Maximum Resolution per Sensor
  • Two (2) 2.8 mm Fixed Lenses
  • Basic Starlight Technology Low Light Sensitivity
  • True Wide Dynamic Range (Channel 1) and True Day/Night (ICR)
  • Built-in Microphone
  • Intelligent Video System
  • Maximum IR LED Distance 20 m (66 ft)

ArcticPro Series Camera - Operational down to –40° C (–40° F)

  • IP67 Ingress Protection and IK10 Vandal Resistance
  • PoE Support
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Reset Button and SD

HDBW4231FN Reset SD.jpg


Product Images

Error creating thumbnail: File missing
Box Contents Wire Harness Reset Button SD-Card Slot

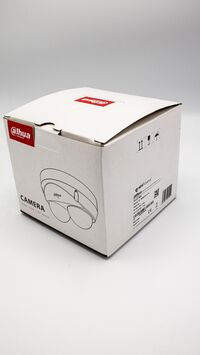

Product Box Box Contents Wire Harness Reset Button SD-Card Slot
