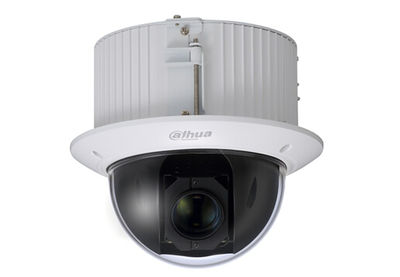

SD52C230T HN.jpg




  • 1/3-in. 4 MP Progressive Scan CMOS
  • Powerful 30x Optical Zoom
  • H.265 and H.264 Video Compression Encoding
  • 4 MP / 3 MP @ 30 fps and 1080p @ 30/60 fps
  • True Wide Dynamic Range
  • Auto-tracking and Intelligent Video System (IVS)
  • IK10 Vandal Resistance
  • PoE+ Support

CAD Images




You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

PTZ Control Firmware

Intelligent Features

Hardware Reset Instructions

In order to access the hardware reset button on the camera you must remove the outer casing and shell.

Remove the three (3) screws in the outer casing

ptz reset 52c430uni - 1.jpg

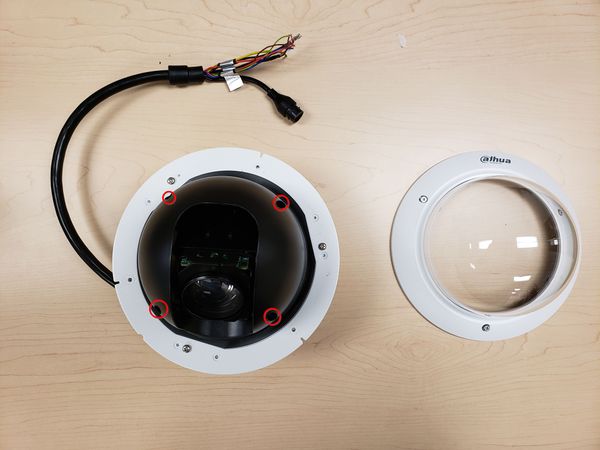

Remove the four (4) screws in the dome covering

ptz reset 52c430uni - 2.jpg

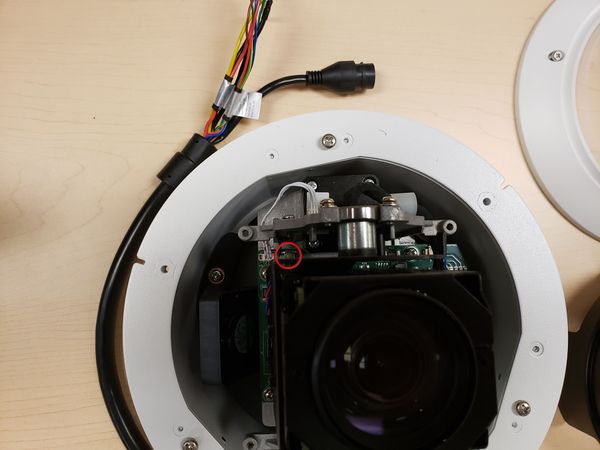

Remove the shell covering the camera

ptz reset 52c430uni - 4.jpg

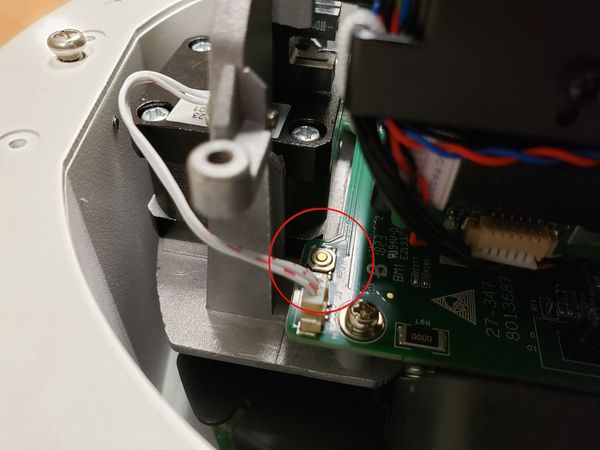

The hardware reset button is circled

ptz reset 52c430uni - 5.jpg

Press and hold the reset button down for 30 seconds with the camera powered on.

After releasing the button the camera should be reset.


Image Sensor 1/3-in. CMOS
Effective Pixels 2592(H) x 1520(V), 4 MP
RAM/ROM 1024 MB / 128 MB
Scanning System Progressive
Minimum Illumination Color: 0.05 Lux at F1.6
  B/W: 0.005 Lux at F1.6
S/N Ratio More than 55 dB
Focal Length 4.5 mm to 135 mm
Max. Aperture F1.6 to F4.4
Angle of View Horizontal: 2.2° to 60°
Optical Zoom 30x
Focus Control Auto/Manual
Close Focus Distance 100 mm to 1000 mm
Pan/Tilt Range Pan: 0° to 360° endless
  Tilt: 0° to 90°, Auto Flip 180°
Manual Control Speed Pan: 0.1° to 350° /s
  Tilt: 0.1° to 250° /s
Preset Speed Pan: 500° /s
  Tilt: 500° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented Focal Length, Speed Adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period
Protocol DH-SD
Auto Tracking Support
IVS Tripwire, Intrusion, Abandoned/Missing Object, Face Detection
Compression H.265, H.264, MJPEG
Streaming Capability Three (3) Streams
Resolution 4 MP (2592 x 1520), 3 MP (2304 x 1296),
  1080p (1920 x 1080), 720p (1280 x 720),
  D1 (704 x 480), CIF (352 x 240)
Frame Rate

Main Stream: 4 MP, 3 MP, 1.3 MP, 720p at 30 fps or
1080p  at 60 fps

  Sub Stream 1: D1, CIF at 30 fps
  Sub Stream 2: 1080p, 1.3 MP, 720p, D1, CIF (1 to 30 fps)
Bit Rate Control CBR, VBR
Bit Rate H.265/H.264: 448 K to 8192 Kbps
  MJPEG: 5120 K to 10240 Kbps
Day/Night Auto (ICR), Color, B/W
Backlight Compensation BLC, HLC, WDR (120 dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Advanced Features Motion Detection, Region of Interest,
  Electronic Image Stabilization (EIS), Defog
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas
Compression G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2
Ethernet RJ-45 (10/100 Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
  DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage)
  Local PC for instant recording, 128 GB
Web Viewer IE 10, Safari
Management Software Smart PSS, DSS
Mobile Operating System IOS, Android, Windows
CE EN 55032
  EN 55024
  EN 50130-4
UL UL: UL60950-1 + CAN/CSA C22.2, No.60950-1
Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
  ANSI C63.4-2014
Audio Interface In: One (1) Channel
  Out: One (1) Channel
Alarm In: Two (2) Channels
  Out: One (1) Channel
Power Supply AC24V, 1.5 A (± 10%), PoE+ (802.3at)
Power Consumption 13 W
Operating Conditions -30°C to 60°C (-22°F to +140°F), Less than 90% RH
Vandal Resistance IK10
Casing Metal
Dimensions Φ198.0 mm x 177.0 mm (Φ7.80 in. x  6.97 in.)
Net Weight 2.20 kg (4.85 lb)
Gross Weight 3.70 kg (8.16 lb)
