59232XANR

59232XANR
Specifications Quick Start Guide Manual Firmware PTZ Firmware

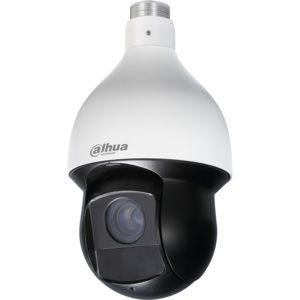

59232XANR 59232XANR image web.png
Series: Pro
Body: PTZ
Image Sensor: 1/2.8-in. STARVIS™ CMOS
Resolution: 4 MP, 2560(H) x 1440(V)
Angle of View: Horizontal: 1.8° to 70.3°
Vertical: 1° to 37°
Diagonal: 2° to 69.3°
Lens Type: Varifocal
Focal Length: 3.95 mm to 177.75 mm
Optical Zoom: 45x
Min. Illumination: Color: 0.005 lux at F1.6
B/W: 0.0005 lux at F1.6
0 lux at F1.6 with IR on
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 250.0 m (820.21 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+,
H.264, MJPEG (sub stream only)
Audio Compression: G.711a, G.711Mu, AAC, G.722, G.726,
G.729, MPEG2-L2
Frame Rate: 4 MP, 3 MP, 1080p, 1.3 MP, or 720p at 30 fps
Multi-Streaming: 3 Streams
Pan/Tilt Range: Pan: 0° to 360° Endless
Tilt: -20° to 90°, Auto Flip 180°
Preset Speed: 300 Presets
Pan: 300° /s
Tilt: 200° /s
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object,
Auto-tracking
Analytics+:
Perimeter Protection, Video Structuralization
ONVIF: Yes
Audio In: One (1) Channel
Audio Out: One (1) Channel
Memory Slot: Micro SD Slot, maximum 256 GB
Alarm In: Seven (7) Channels
Alarm Out: Two (2) Channels
IP Rating: 67
IK Rating: 10
Operating Temp: –40° C to +70° C (–40° F to +158° F),
Less than 95% RH
Power: 24 VAC, 3 A (± 10%) or PoE+ (IEEE 802.3at)
< 26 W
ePoE: No

Features

• 1/2.8-in. 2 MP STARVIS™ CMOS Sensor

• 1080p at 30 fps Maximum Resolution

• Triple-stream Encoding

• Smart H.265+ and Smart H.264+ Dual Codec

• Powerful 32x Optical Zoom

• Starlight Technology for Ultra-low Light Sensitivity

• True Wide Dynamic Range (120 dB)

• Analytics+ Function – Perimeter Protection and Smart Motion Detection

• ArcticPro Series Camera - Operational down to –40° C (–40° F)

• IP66 Ingress Protection

• Intelligent Video System with Auto-tracking

• Maximum IR Distance up to 150 m (492 ft)

• Five-year Warranty (for products sold through authorized Dahua Dealers)

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Product Images

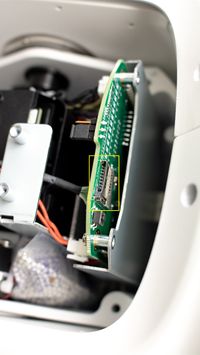

Product Box Box Contents Wire Harness Reset Button SD-Card Slot
Product Box Box Contents Wire Harness Reset Button SD-Card Slot
