5A445XANR

Model
Specifications Quick Start Guide Manual Firmware PTZ Firmware

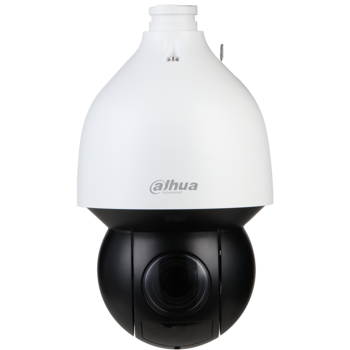

5A445XANR 5A445XANR Product web image.png
Series: Pro
Body: PTZ
Image Sensor: 1/2.8-in. STARVIS™ CMOS
Resolution: 4 MP, 2560(H) x 1440(V)
Angle of View: Horizontal: 70.3° to 1.8°
Vertical: 37.0° to 1.0°
Diagonal: 69.3° to 2.0°
Lens Type: Varifocal
Focal Length: 3.95 mm to 177.7 mm
Optical Zoom: 45x
Min. Illumination: Color: 0.005 lux at F1.6
B/W: 0.0006 lux at F1.6
0 Lux with IR on
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 150.0 m (492.13 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+,
H.264, MJPEG (sub stream only)
Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC,
G722.1, G.723, G.729, PCM, MPEG2-Layer2
Frame Rate: 4 MP or 3 MP at 30 fps
Multi-Streaming: 3 Streams
Pan/Tilt Range: Pan: 0° to 360° Endless
Tilt: -15° to 90°
Preset Speed: 300 Presets
Pan: 400° /s
Tilt: 300° /s
IVS: Motion, Abandoned/Missing Object,
Facial Detection
Analytics+:
Perimeter Protection, Alarm Track,
Smart Motion Detection
ONVIF: Yes
Audio In: One (1) Channel
Audio Out: One (1) Channel
Memory Slot: Micro SD Slot, maximum 256 GB
Alarm In: Two (2) Channels
Alarm Out: One (1) Channel
IP Rating: 67
IK Rating: 10
Operating Temp: –40° C to +70° C (–40° F to +158° F),
Less than 95% RH
Power: 24 VAC, 3 A (± 25%) or
PoE+ (IEEE 802.3at, Class 4)
< 20 W
ePoE: No

Features

  • 1/2.8-in. 4 MP Progressive-scan STARVIS™ CMOS Sensor
  • Powerful 45x Optical Zoom Lens
  • Smart H.265+ and Smart H.264+ Dual Codecs
  • 4 MP at 30 fps Maximum Resolution
  • Analytics+ Functions — Perimeter Protection, Alarm Track, and Smart Motion Detection
  • Starlight Technology for Ultra-low Light Sensitivity
  • Maximum IR Distance up to 150 m (492.13 ft)
  • Predictive Focus Algorithm+ (PFA+) Technology
  • ArcticPro Series Camera - Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty*

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Product Images

Error creating thumbnail: File missing
Error creating thumbnail: File missing
Error creating thumbnail: File missing
Reset Button SD-Card Slot
Product Box Box Contents Wire Harness Reset Button SD-Card Slot

Specifications
