6CE230UNI

6CE230UNI
Specifications Quick Start Guide Manual Firmware PTZ Firmware

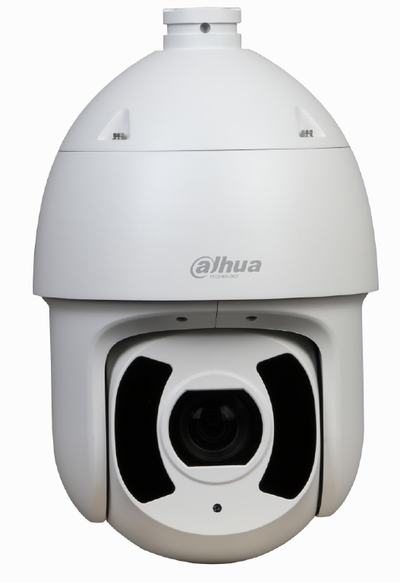

6CE230UNI 6CE230UNI.png
Series: Pro
Body: PTZ
Image Sensor: 1/2.8-in. STARVIS™ CMOS Sensor
Resolution: 2 MP, 1920(H) x 1080(V)
Angle of View: Horizontal: 67.8°to 2.4°
Lens Type: Varifocal
Focal Length: 4.5 mm to 135 mm
Optical Zoom: 30x
Min. Illumination: Color: 0.005 lux at F1.6
0 lux at F1.6 (IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 200 m (656.17 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression: G.711a, G.711Mu, PCM, AAC, G.722,
G.726, G.729, MPEG2-L2
Frame Rate: 1080p, 1.3 MP or 720p at 60 fps
Multi-Streaming: 3 Streams
Pan/Tilt Range: Pan: 0° to 360° Endless
Tilt: -20° to 90°, Auto Flip 180°
Preset Speed: 300 Presets
Pan: 300° /s
Tilt: 200° /s
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object,
Heat Map, Auto-tracking
ONVIF: Yes
Audio In: One (1) Channel
Audio Out: One (1) Channel
Memory Slot: Micro SD Slot, maximum 128 GB
Alarm In: Seven (7) Channels
Alarm Out: Two (2) Channels
IP Rating: 67
IK Rating: 10
Operating Temp: –40° C to +70° C (–40° F to +158° F),
with built-in heater
Less than 90% RH
Power: 24 VAC, 3 A (± 25%), PoE+ (802.3at Class 4)
< 25 W
ePoE: No

Features

  • 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
  • Powerful 30x Optical Zoom
  • Starlight Technology for Ultra-low Light Sensitivity
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codecs
  • 1080p at 60 fps Maximum Resolution
  • True Wide Dynamic Range (120 dB)
  • Maximum IR Distance up to 200 m (656 ft)
  • Intelligent Video System (IVS) Analytics with Auto-tracking
  • ArcticPro Series Camera - Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Designed for Extreme Temperature Environments
  • Five-year Warranty (for products sold through authorized Dahua Dealers)

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Product Images

Product Box Box Contents Wire Harness Reset Button SD-Card Slot
Product Box Box Contents Wire Harness Reset Button SD-Card Slot
