6AE240VNI

6AE240VNI
Specifications Quick Start Guide Manual Firmware PTZ Firmware

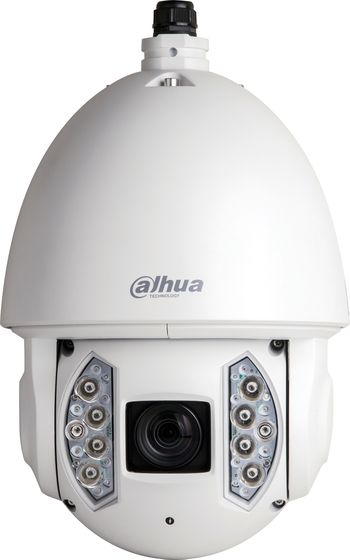

6AE240VNI 6AE240VNI.png
Series: Ultra
Body: PTZ
Image Sensor: 1/2.8-in. STARVIS™ CMOS
Resolution: 2 MP, 1920(H) x 1080(V)
Angle of View: Horizontal: 67.5°to 1.7°
Lens Type: Varifocal
Focal Length: 4.5 mm to 180 mm
Optical Zoom: 40x
Min. Illumination: Color: 0.005 lux at F1.2
0 lux at F1.2 (IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 200 m (656.17 ft)
WDR: 140dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression: G.711a, G.711Mu, PCM, AAC, G.722.1,
G.729, MPEG2-L2
Frame Rate: 1080p at 60 fps, or
1.3 MP or 720p at 30 fps
Multi-Streaming: 3 Streams
Pan/Tilt Range: Pan: 0° to 360° Endless
Tilt: -20° to 90°, Auto Flip 180°
Preset Speed: 300 Presets
Pan: 240° /s
Tilt: 200° /s
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object,
Facial Detection, Heat Map, Auto-tracking
ONVIF: Yes
Audio In: One (1) Channel
Audio Out: One (1) Channel
Memory Slot: Micro SD Slot, maximum 128 GB
Alarm In: Seven (7) Channels
Alarm Out: Two (2) Channels
IP Rating: 67
IK Rating: 10
Operating Temp: –40° C to +70° C (–40° F to +158° F),
Less than 90% RH
Power: 24 VAC, 3 A (± 25%) or
via Dahua proprietary Hi-PoE power source
< 38 W
ePoE: No

Features

  • 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
  • Powerful 40x Optical Zoom
  • Starlight Technology for Ultra-low Light Sensitivity
  • Triple-stream Encoding
  • H.265 and H.264 Dual Codec
  • 1080p at 60 fps Maximum Resolution
  • Simultaneous SD Analog Video Output
  • Ultra Wide Dynamic Range (140 dB)
  • Maximum IR Distance up to 200 m (656 ft)
  • Intelligent Video System (IVS) Analytics with Auto-tracking
  • ArcticPro Series Camera - Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Designed for Extreme Temperature Environments
  • Five-year Warranty (applies to products sold through an authorized Dahua Dealer.)
