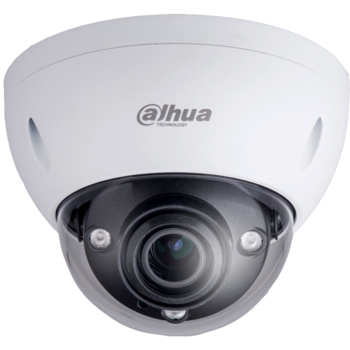

DH-IPC-HDBW5831EN-Z5E

DH-IPC-HDBW5831EN-Z5E


float

float


Features

  • 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 8 MP (3840 x 2160) at 15 fps or 3 MP (2304 x 1296) at 30 fps
  • 7 mm to 35 mm Motorized Optical Zoom Lens
  • Enhanced Power and Data Transmission Distances (ePoE)
  • True Wide Dynamic Range (120 dB) and True Day/Night (ICR)
  • Maximum IR LED Distance 100 m (328 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Compression

Reset Button and SD Card

Reset Button

DH-IPC-HDBW5831EN-Z5E Reset Button.JPG

SD Card

HDBW5831EN SD CARD.jpg

Video Instructions

Zoom Feature


Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Specification

Camera
Image Sensor 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMO
Effective Pixels 3840(H) x 2160(V)
RAM/ROM 512 MB/32 MP
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: Color: 0.05 lux at F1.4 (1/3 s, 30 IRE)

Color: 0.2 lux at F1.4 (1/30 s, 30 IRE)

0 lux at F1.4 (IR on)

S/N Ratio More than 50 dB
IR Distance Distance up to 100 m (328.08 ft)
IR On/Off Control Auto, Manual
IR LEDs Three (3)
Lens
Lens Type Motorized, Auto Iris (HALL)
Mount Type Board-in
Focal Length 7 mm to 35 mm
Max Aperture F1.4
Angle of View Horizontal: 38° to 14°

Vertical: 22° to 8°

Optical Zoom 5x
Focus Control Motorized
Close Focus Distance 0.60 m (1.97 ft)
Installation Angle
Range Pan: 0° to 335°

Tilt: 0° to 65°

Rotation: 0° to 355°

DORI Distances²
Detect Observe Recognize Identify
Wide 234 m

(767 ft)

94 m

(308 ft)

47 m

(154 ft)

23 m

(75 ft)

Tele 765 m

(2509 ft)

306 m

(1004 ft)

153 m

(504 ft)

76 m

(251 ft)

Video
Compression Smart H.265+, H.265, Smart H.264+, H.264
Streaming Capability Three (3) Streams
Resolution 8 MP (3840 x 2160),

6 MP (3072 x 2048),

5 MP (3072 x 1728),

5 MP (2592 x 1944),

4 MP (2688 x 1520),

3 MP (2304 x 1296),

1080p (1920 x 1080),

1.3 MP (1280 x 960),

720p (1280 x 720),

D1 (704 x 480),

VGA (640 x 480),

CIF (352 x 240)

Frame Rate Main Stream: 8 MP at 15 fps or 3 MP at 30 fps

Sub Stream 1: D1 at 30 fps

Sub Stream 2: 720p at 30 fps

Bit Rate Control CBR/VBR
Bit Rate H.264: 24 Kbps to 10240 Kbps

H.265: 14 Kbps to 9984 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, WDR
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangular)
Region of Interest Off, On (4 Zones)
Smart IR Support
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Areas, Rectangular)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Certifications
Safety UL60950-1

EN 60950:2000

Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B
Interface
Video Output: One (1), for adjustment only
Audio Input: One (1) Channel

Output: One (1) Channel

Alarm Input: One (1) Channel (5 mA, 5 VDC)

Output: One (1) Channel (300 mA, 12 VDC)

Electrical
Power Supply 12 VDC, 2 A; 24 VAC, 0.8 A; or

PoE+ (IEEE 802.3at, Class 4)

Power Consumption < 15 W
Environmental
Operating Conditions –30° C to +60° C (–22° F to +140° F)

Less than 95% RH

Initiate startup above –30° C (–22° F)

Storage Conditions –30° C to +60° C (–22° F to +140° F),

Less than 90% RH

Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions ø159.10 mm x 117.90 mm

(ø6.26 in. x 4.64 in.)

Net Weight 0.95 kg (2.09 lbs)
Gross Weight 1.20 kg (2.65 lbs)
