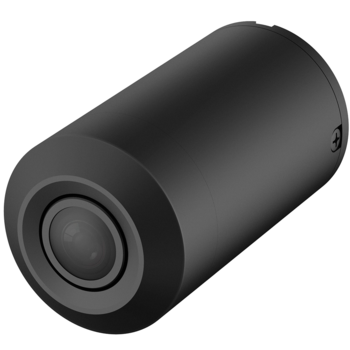

DH-IPC-HUM8431-L3

DH-IPC-HUM8431-L3


float


Features

  • Camera/Lens Unit for DH-IPC-HUM8431N-E1 Covert Network Pinhole Processing Unit
  • 1/2.7-in. 4 MP Progressive-scan CMOS Sensor
  • 2.8 mm Fixed Lens
  • True Wide Dynamic Range (120 dB)
  • Electronic Day/Night Filter
  • 8 m (26.25 ft) Cable
  • IP67 Ingress Protection
  • Requires DH-IPC-HUM8431N-E1 Covert Network Pinhole Processing Unit
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Images and WITB

FOV

Compression

Firmware

Firmware Update Instructions

Firmware Update Download

  • Coming Soon

Specifications

Camera
Image Sensor 1/2.7-in. 4 MP Progressive-scan CMOS
Effective Pixels 2688(H) x 1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100000 s
Minimum Illumination Color: 0.006 lux at F1.8 (1/3 s, 30 IRE)

Color: 0.04 lux at F1.8 (1/30 s, 30 IRE)
B/W: 0.003 lux at F1.8 (1/3 s, 30 IRE)
B/W: 0.02 lux at F1.8 (1/30 s, 30 IRE)

Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm
Maximum Aperture F1.8
Angle of View Horizontal 109°
Vertical 60°
Focus Control Fixed
DORI¹ Distance
Detect

(8 ppf)

Observe

(19 ppf)

Recognize

(38 ppf)

Identify

(76 ppf)

56 m (183 ft) 22 m (72 ft) 11 m (36 ft) 5 m (16 ft)
Certifications
Safety UL60950-1

EN 60950:2000

Electromagnetic Compatibility

(EMC)

FCC CFR 47 Part 15 Subpart B
Electrical
Power Supply Via DH-IPC-HUM8431N-E1
Environmental
Operating Conditions –30° C to +60° C (–22° F to +140° F)

Less than 95% RH

Storage Conditions –30° C to +60° C (–22° F to +140° F)

Less than 95% RH

Ingress Protection IP67
Construction
Casing Metal
Dimensions Ø30.50 mm x 57.59 mm

(Ø1.20 in. x 2.27 in.)

Net Weight 0.40 kg (0.84 lb)
Gross Weight 0.47 kg (1.04 lb
