DH-IPC-HFW52A1EN-Z

DH-IPC-HFW52A1EN-Z
Specifications Quick Start Guide Manual Firmware

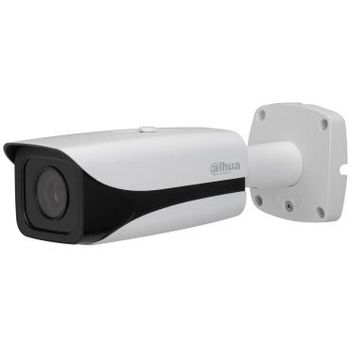

DH-IPC-HFW52A1EN-Z HFW82A1EN.jpg
Series: Pro
Body: Bullet
Image Sensor: 1/2.7" CMOS
Resolution: 2 MP, 1920(H) x 1080(V)
Angle of View: Horizontal: 99° to 34°
Lens Type: Motorized/ Auto Iris (DC)
Focal Length: 2.7mm~12mm
Min. Illumination: Color: 0.01 Lux@F1.4;
B/W: 0.001 Lux@F1.4;
0 Lux (IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 50.0 m (164.04 ft)
WDR: 120dB
Video Compression: Smart H.264+ / MJPEG
Frame Rate: 1080p/720p (1 ~ 30fps)
Multi-Streaming: 3 Streams
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object,
Facial Detection
ONVIF: Yes
Audio In: 1
Audio Out: 1
Memory Slot: Micro SD Slot, maximum 128 GB
Alarm In: 2
Alarm Out: 1
IP Rating: 67
IK Rating: -
Operating Temp: -30°C ~ +60°C (-22°F ~ +140°F)
Less than 90% RH
Power: DC12V (AC24V optional), ±25%, PoE (af Class 0)
< 11.5 W
ePoE: No

EOL

  • Currently EOL

Suggested Replacement

  • N25BB5Z

Features

  • 1/2.7” 2Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • 25/30fps@1080(1920×1080)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.7mm ~12mm motorized lens
  • 2/1 Alarm in/out, 1/1 audio in/out
  • Max. IR LEDs Length 50m
  • Micro SD memory, IP67, PoE

CAD Images

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

FOV

Firmware

Firmware Update Instructions

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA121PFA121
Accessories Combo 2 PFA121PFA121 PFA150PFA150
Accessories Combo 3 PFA121PFA121 PFA152PFA152
Accessories Combo 4 PFA121PFA121 PFA151PFA151

Product Diagram

CAD IP Super DH-IPC-HFW82A1EN-Z(I).jpg

Reset Button

IPC HFW54A1EN ZI reset button.jpg
