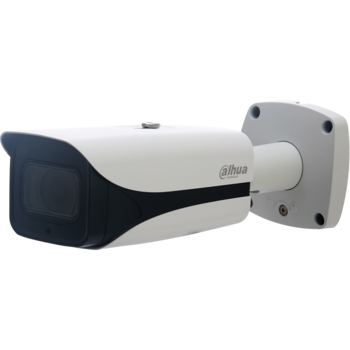

DH-IPC-HFW5831EN-Z5E


float

float


Features

  • 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codecs
  • 8 MP at 15 fps, 3 MP at 30 fps
  • 7 mm to 35 mm Motorized Optical Zoom Lens
  • Enhanced Power and Data Transmission Distances with ePoE
  • True WDR (120 dB) and True Day/Night (ICR)
  • Maximum IR LED Length 50 m (164 ft) with Smart IR
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Firmware

Firmware Update Instructions


Specifications

Camera
Image Sensor 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS
Effective Pixels 3840(H) x 2160(V)
RAM/ROM 512 MB/32 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.05 lux at F1.4 (1/3 s, 30 IRE)

Color: 0.2 lux at F1.4 (1/30 s, 30 IRE)

0 lux at F1.4 (IR on)

S/N Ratio More than 50 dB
IR Distance Distance up to 100 m (328.08 ft)
IR On/Off Control Auto, Manual
IR LEDs Four (4)
Lens
Lens Type Motorized, Auto Iris (HALL)
Mount Type Board-in
Focal Length 7 mm to 35 mm
Maximum Aperture F1.4
Angle of View Horizontal: 38° to 14°

Vertical: 22° to 8°

Optical Zoom 5x
Focus Control Motorized
Close Focus Distance 0.60 m (1.97 ft)
DORI¹ Distance
Lens Detect Observe Recognize Identify
Wide 234 m (767 ft) 94 m (308 ft) 47 m (154 ft) 23 m (75 ft)
Tele 765 m (2509 ft 306 m (1004 ft) 153 m (502 ft) 76 m (251 ft)
Installation Angle
Range Pan: 0˚ to 360˚

Tilt: 0˚ to 90˚

Rotation: 0˚ to 360˚

Video
Compression Smart H.265+, H.265, Smart H.264+, H.264
Streaming Capability Three (3) Streams
Resolution 8 MP (3840 x 2160), 6 MP (3072 x 2048),

5 MP (3072 x 1728), 5 MP (2592 x 1944),

4 MP (2688 x 1520), 3 MP (2304 x 1296),

1080p (1920 x 1080), 1.3 MP (1280 x 960),

720p (1280 x 720), D1 (704 x 480), VGA (640 x 480),

CIF (352 x 240)

Frame Rate Main Stream: 8 MP at 15 fps or 3 MP at 30 fps

Sub Stream 1: D1 at 30 fps

Sub Stream 2: 720p at 30 fps

Bit Rate Control CBR/VBR
Bit Rate H.264: 1024 Kbps to 6144 Kbps

H.265: 256 Kbps to 4096 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, WDR
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangular)
Region of Interest Off, On (4 Zones)
Smart IR Support
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Areas, Rectangular)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,

FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,

UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP,

IGMP, SNMP

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Maximum User Access 10 Users / 20 Users
Edge Storage Network Attached Storage (NAS)

Local PC for Instant Recording

Micro SD Slot, maximum 128 GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software SmartPSS, DSS
Smart Phone IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility

(EMC)

FCC CFR 47 Part 15 Subpart B
Interface
Audio Input: One (1) Channel

Output: One (1) Channel

Alarm Input: Two (2) Channels (5 mA, 5 VDC)

Output: One (1) Channel (300 mA, 12 VDC)

Electrical
Power Supply 12 VDC, 1 A or PoE (IEEE 802.3af, Class 0)
Power Consumption < 12.95 W
