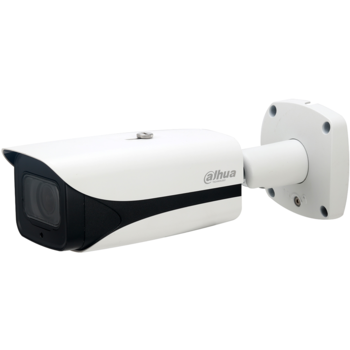

N45DB7Z DH-IPC-N45DB7Z.png
Series: Pro
Body: Bullet
Image Sensor: 1/1.8-in. 4 MP CMOS
Resolution: 4 MP, 2688(H) x 1520(V)
Angle of View: Horizontal: 114° to 47°
Vertical: 62° to 26°
Lens Type: Motorized
Focal Length: 2.7 mm to 12 mm
Min. Illumination: Color: 0.0024 lux at F1.8 (1/3 s, 30 IRE)
Color: 0.029 lux at F1.8 (1/30 s, 30 IRE)
0 lux at F1.8 (with IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 50.0 m (164.04 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264,
H.264B, H.264H, MJPEG (sub stream only)
Audio Compression: G.711a, G.711Mu, AAC, G.726, G.723
Frame Rate: 4 MP (2688 x 1520) at 30 fps
Multi-Streaming: 3 Streams
IVS: Motion, Scene Change, Abandoned/Missing Object,
Facial Detection
Analytics+: Face Capture with Facial Attribute Extraction,
People Counting, Perimeter Protection
Audio In: One (1) Channel
Audio Out: One (1) Channel
Memory Slot: Micro SD Slot, maximum 256 GB
Alarm In: Two (2) Channels (5 mA, 5 VDC)
Alarm Out: One (1) Channel (300 mA, 12 VDC)
IP Rating: 67
IK Rating: 10
Operating Temp: –40° C to +60° C (–40° F to +140° F)
10% to 95% RH
Power: 12 VDC or PoE+ (IEEE 802.3at, Class 4)
< 15.2 W
ePoE: Yes


  • 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 4 MP (2688 x 1520) at 30 fps, 2.7 mm to 12 mm Motorized Vari-focal Lens
  • Enhanced Power and Data Transmission Distances (ePoE)
  • Starlight+ Technology for Low-light Applications
  • Analytics+ Functions — Face Capture, Metadata Extraction, and Perimeter Protection
  • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
  • Maximum IR LED Distance 50 m (164.04 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System
  • 5-year Warranty (for products sold through an authorized Dahua dealer)
