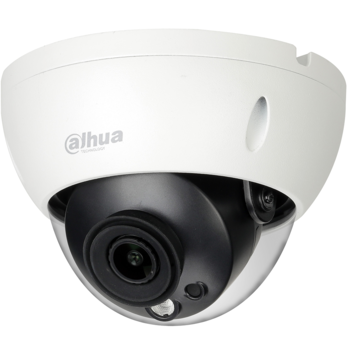

N45DM62

N45DM62


float


float

Features

  • 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 4 MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
  • Enhanced Power and Data Transmission Distances (ePoE)
  • Starlight+ Technology for Low-light Applications
  • Analytics+ Functions — Perimeter Protection
  • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
  • Maximum IR LED Distance 26 m (85.30 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System
  • 5-year Warranty (for products sold through an authorized Dahua dealer)

Compression

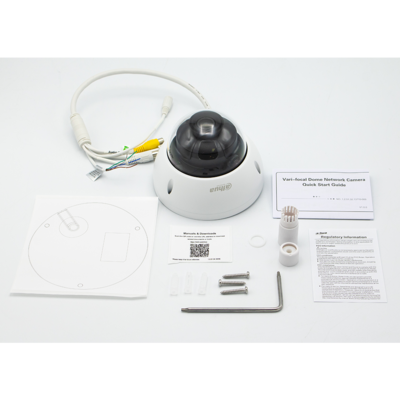

What's in the Box

N45DM62 WITB.png

Firmware

Firmware Update Instructions

Firmware Update Download

Specifications

Camera
Image Sensor 1/1.8-in. 4 MP CMOS
Effective Pixels 2688(H) x 1520(V)
RAM/ROM 512 MB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.0016 lux at F1.6 (1/3 s, 30 IRE)

Color: 0.015 lux at F1.6 (1/30 s, 30 IRE)

0 lux at F1.6 (IR on)

S/N Ratio Greater than 56 dB
IR Distance Up to 26 m (85.30 ft)
IR On/Off Control Auto, Manual
IR LEDs One (1)
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm
Maximum Aperture F1.6
Angle of View Horizontal: 113°

Vertical: 60°

Focus Control Fixed
Close Focus Distance 1.30 m (4.27 ft)
DORI¹ Distance
Lens Detect Observe Recognize Identify
2.8 mm 58 m (190 ft) 23 m (75 ft) 12 m (39 ft) 6 m (20 ft)
Installation Angle
Range Pan: 0˚ to 355˚

Tilt: 0˚ to 75˚

Rotation: 0˚ to 355˚

Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,

H.264H, MJPEG (Sub Stream only)

Streaming Capability Three (3) Streams
Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296),

1080p (1920 x 1080), 1.3 MP (1280 x 960),

720p (1280 x 720), D1 (704 x 480), VGA (640 x 480),

CIF (352 x 240)

Frame Rate Main Stream:4 MP (2688 x 1520) at 30 fps

Sub Stream 1: D1 at 30 fps

Sub Stream 2: 1080p at 11 fps

Bit Rate Control CBR/VBR
Bit Rate H.264: 32 Kbps to 8192 Kbps

H.265: 19 Kbps to 8192 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, True WDR (120 dB), SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual,

Regional Custom

Gain Control Auto, Manual, Gain Priority, Shutter Priority
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangular)
Region of Interest Off, On (4 Zones)
Advanced Features Smart IR, Defog
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Areas, Rectangular)
Audio
Compression G.711a, G.711Mu, AAC, G.726, G.723
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP,

FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,

UPnP, NTP, ICMP, IGMP, 802.1x

Interoperability ONVIF Profile S and G, CGI, Milestone, Genetec, P2P
Streaming Method Unicast / Multicast
Maximum User Access 20 Users
Edge Storage Network Attached Storage (NAS)

FTP Micro SD Slot, maximum 256 GB

Web Viewer IE (Version 8 and higher), Chrome, Firefox,

Safari (Version 12 and higher)

Management Software SmartPSS, DSS, P2P
Mobile Operating System IOS, Android
Certifications
Safety UL60950-1

CAN/CSA C22.2 No.60950-1-07 EN60950-1

Electromagnetic Compatibility

(EMC)

FCC CFR 47 Part 15 Subpart B

Electromagnetic Compatibility Directive 2014/30/EU

Interface
Audio Input: One (1) Channel

Output: One (1) Channel

Alarm Input: One (1) Channel (5 mA, 5 VDC)

Output: One (1) Channel (300 mA, 12 VDC)

Electrical
Power Supply 12 VDC or PoE (IEEE 802.3af, Class 0)
Power

Consumption

12 VDC Standard: 2.8 W

with IR ON: 5.6 W

PoE Standard: 3.3 W
with IR ON: 6.1 W
