USA/IPCamera/Pro/N45EJ62

N45EJ62

N45EJ62
Specifications Quick Start Guide Manual Firmware

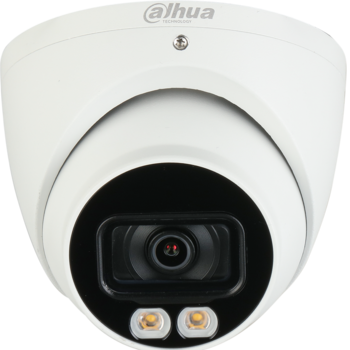

N45EJ62 N45EJ62.png
Series: Lite
Body: Eyeball
Image Sensor: 1/3-in. 4 MP Progressive-scan CMOS
Resolution: 4 MP, 2688(H) x 1520(V)
Angle of View: Horizontal: 104°
Vertical: 58°
Lens Type: Fixed
Focal Length: 2.8 mm
Min. Illumination: Color: 0.06 lux at F1.6 (1/3 s, 30 IRE)
Color: 0.4 lux at F1.6 (1/30 s, 30 IRE)
0 lux at F1.6 (IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 50.0 m (164.04 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression: G.711a, G.711Mu, AAC, G.726
Frame Rate: 4 MP at 30 fps
Multi-Streaming: 3 Streams
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object
ONVIF: Yes
Audio In: 1 (Built-in Microphone)
Audio Out: 0
Memory Slot: Micro SD Slot, maximum 128 GB
Alarm In: 0
Alarm Out: 0
IP Rating: 67
IK Rating: -
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 95% RH
Power: 12 VDC, 1 A or PoE (IEEE 802.3af, Class 0)
< 5.5 W
ePoE: Yes

Features

  • 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
  • Triple Stream Encoding
  • Smart H. 265+ and H.264 Dual Codecs
  • 4 MP (2688 x 1520) at 30 fps
  • 2.8 mm Fixed Lens
  • Built-in Microphone
  • Enhanced Power and Data Transmission Distances with ePoE
  • Starlight+ Technology for Low-light Applications
  • Analytics+ Functions — People Counting, Perimeter Protection, Smart Motion Detection, and Face Detection
  • White-light Night Color Technology for Color Images in Total Darkness
  • ArcticPro Series Camera - Operational down to –40° C (–40° F)
  • IP67 Ingress Protection
  • Ultra Wide Dynamic Range (140 dB) and True Day/Night IR Cut Filter
  • Maximum IR LED Distance 26 m (85.30 ft)
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Product Images

Product Box Box Contents Wire Harness Reset Button SD-Card Slot
Product Box Box Contents Wire Harness Reset Button SD-Card Slot
