N65CL5Z

N65CL5Z
Specifications Quick Start Guide Manual Firmware

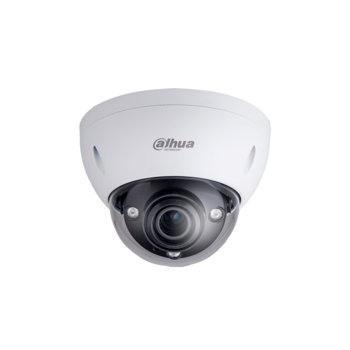

N65CL5Z N65CL5Z.png
Series: Pro
Body: Dome
Image Sensor: 1/2.9-in. 6 MP Progressive-scan STARVIS™ CMOS
Resolution: 6 MP, 3072(H) x 2048(V)
Angle of View: Horizontal: 27° to 91°
Vertical: 18° to 58°
Lens Type: Motorized, Auto Iris
Focal Length: 2.7 mm to 13.5 mm
Min. Illumination: Color: 0.03 lux at F1.4 (1/3 s,30 IRE)
Color: 0.3 lux at F1.4 (1/30 s, 30 IRE)
0 lux at F1.4 with IR on
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 50.0 m (164.04 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Audio Compression: G.711a, G.711Mu, AAC, G.726
Frame Rate: 6 MP at 20 fps or 4 MP at 30 fps
Multi-Streaming: 3 Streams
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object,
Facial Detection
ONVIF: Yes
Audio In: One (1) Channel
Audio Out: One (1) Channel
Memory Slot: Micro SD Slot, maximum 128 GB
Alarm In: One (1) Channel, 5 mA, 5 VDC
Alarm Out: One (1) Channel, 300 mA, 12 VDC
IP Rating: 67
IK Rating: 10
Operating Temp: –30° C to +60° C (–22° F to +140° F)
Less than 95% RH
Power: 12 VDC ± 30% or 24 VAC ± 30%, 1.25 A maximum; or
PoE+ (802.3at Class 4)
< 15 W
ePoE: Yes

Features

  • 1/2.9-in. 6 MP Progressive-scan STARVIS™ CMOS Sensor
  • Triple Stream Encoding
  • Smart H. 265+ and H.264 Dual Codecs
  • 6 MP at 20 fps or 4 MP at 30 fps, Maximum Resolution
  • 2.7 mm to 13.5 mm Motorized Optical Zoom Lens
  • Enhanced Power and Data Transmission Distances with ePoE
  • True WDR (120 dB) and Day/Night (ICR)
  • Maximum IR LED Length 50 m (164 ft) with Smart IR

(IP67 Ingress Protection and IK10 Vandal Resistance

  • Intelligent Video System
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Firmware

Firmware Update Instructions

Reset Button

N65CL5Z reset button.png
