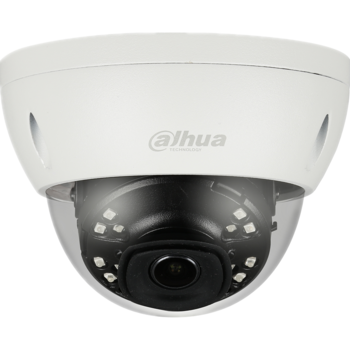

N84CL52



float



Features

  • 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codecs
  • 8 MP at 15 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Enhanced Power and Data Transmission Distances with ePoE
  • True WDR (120 dB) and True Day/Night (ICR)
  • Maximum IR LED Length 30 m (98 ft) with Smart IR
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Firmware

Firmware Update Instructions

Firmware Update Download

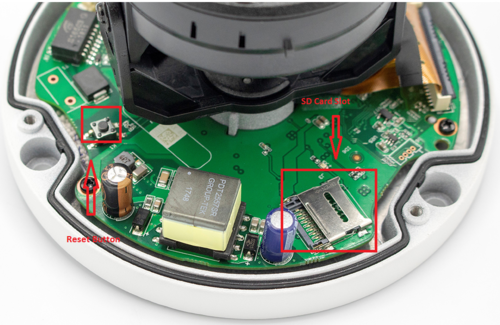

Reset Button and SD

N44CL52 N44CL53 Reset SD.png

Compatible Accessories


Specifications

Camera
Image Sensor 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS
Effective Pixels 3840(H) x 2160(V)
RAM/ROM 512 MB/32 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.06 lux at F1.6 (1/3 s, 30 IRE)

Color: 0.3 lux at F1.6 (1/30 s, 30 IRE)

0 lux at F1.6 (IR on)

S/N Ratio More than 50 dB
IR Distance Distance up to 30 m (98.43 ft)
IR On/Off Control Auto, Manual
IR LEDs 18
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm
Maximum Aperture F1.6
Angle of View Horizontal: 110°

Vertical: 68°

Focus Control Fixed
Close Focus Distance 0.90 m (2.95 ft)
DORI¹ Distance
lens Detect Observe Recognize Identify
2.8 mm 69 m (226 ft) 28 m (92 ft) 14 m (46 ft) 7 m (23 ft)
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264
Streaming Capability Three (3) Streams
Resolution 8 MP (3840 x 2160), 6 MP (3072 x 2048),

5 MP (2560 x 1920) 3 MP (2048 x 1536),

3 MP (2304 x 1296), 1080p (1920 x 1080),

1.3 MP (1280 x 960), 720p (1280 x 720),

D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)

Frame Rate Main Stream: 8 MP at 15 fps or 3 MP at 30 fps

Sub Stream 1: D1 at 15 fps²

Sub Stream 2: 1080p at 3 fps²

Bit Rate Control CBR/VBR
Bit Rate H.264: 64 Kbps to 10240 Kbps

H.265: 64 Kbps to 6144 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, True WDR (120 dB)
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual, Gain Priority, Shutter Priority
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangular)
Region of Interest Off, On (4 Zones)
Smart IR Support
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Areas, Rectangular)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,

FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,

UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP,

IGMP, SNMP

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Maximum User Access 10 Users /20 Users
Edge Storage Network Attached Storage (NAS)

Local PC for Instant Recording

Micro SD Slot, maximum 128 GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software SmartPSS, DSS
Smart Phone IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility

(EMC)

FCC CFR 47 Part 15 Subpart B
Interface
Audio Input: One (1) Channel, RCA

Output: One (1) Channel, RCA

Alarm Input: One (1) Channel (5 mA, 5 VDC)

Output: One (1) Channel (300 mA, 12 VDC)

Electrical
Power Supply 12 VDC, 0.5 A or PoE (IEEE 802.3af, Class 0)
Power Consumption < 5.5 W
