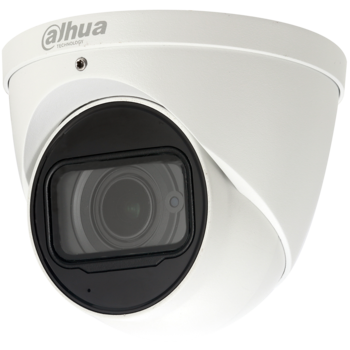

N85CM5Z


float

float

Features

  • 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS Sensor
  • Dual Stream Encoding
  • Smart H.265+ and H.264+ Dual Codecs
  • 8 MP at 15 fps, 3 MP at 30 fps
  • 2.7 mm to 12 mm Motorized Optical Zoom Lens
  • Enhanced Power and Data Transmission Distances with ePoE
  • Built-in Microphone
  • True WDR (120 dB) and True Day/Night (ICR)
  • Maximum IR LED Length 50 m (164 ft) with Smart IR
  • IP67 Ingress Protection
  • Intelligent Video System
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Firmware Update Instructions

Firmware Update Download

Specifications

Camera
Image Sensor 1/2.5-in. 8 MP Progressive-scan CMOS
Effective Pixels 3840(H) x 2160(V)
RAM/ROM 512 MB/32 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.05 lux at F1.4 (1/3 s, 30 IRE)

Color: 0.2 lux at F1.4 (1/30 s, 30 IRE)

0 lux at F1.4 (IR on)

S/N Ratio More than 50 dB
IR Distance Distance up to 50 m (164.04 ft)
IR On/Off Control Auto, Manual
IR LEDs Two (2)
Lens
Lens Type Motorized, Auto Iris (DC)
Mount Type Board-in
Focal Length 2.7 mm to 12 mm
Maximum Aperture F1.4
Angle of View Horizontal: 110° to 40°

Vertical: 58° to 23°

Optical Zoom 4x
Focus Control Motorized
Close Focus Distance 0.30 m (0.98 ft)
DORI¹ Distance
Lens Detect Observe Recognize Identify
Wide 85 m (280 ft) 34 m (112 ft) 17 m (56 ft) 8.5 m (28 ft)
Tele 228 m (748 ft) 91 m (299 ft) 46 m (151 ft) 23 m (75 ft)
Installation Angle
Range Pan: 0˚ to 360˚

Tilt: 0˚ to 78˚

Rotation: 0˚ to 360˚

Video
Compression Smart H.265+, H.265, Smart H.264+, H.264
Streaming Capability Three (3) Streams
Resolution 8 MP (3840 x 2160), 6 MP (3072 x 2048),

5 MP (3072 x 1728), 5 MP (2592 x 1944),

4 MP (2688 x 1520), 3 MP (2304 x 1296),

1080p (1920 x 1080), 1.3 MP (1280 x 960),

720p (1280 x 720), D1 (704 x 480), VGA (640 x 480),

CIF (352 x 240)

Frame Rate Main Stream: 8 MP at 15 fps or 3 MP at 30 fps

Sub Stream 1: D1 at 30 fps

Sub Stream 2: 720p at 30 fps

Bit Rate Control CBR/VBR
Bit Rate H.264: 1024 Kbps to 6144 Kbps

H.265: 256 Kbps to 4096 Kbps

Day/Night Auto (ICR), Color, B/W
BLC Mode BLC, HLC, True WDR (120 dB)
White Balance Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control Auto, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangular)
Region of Interest Off, On (4 Zones)
Smart IR Support
Digital Zoom 16x
Flip 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (4 Areas, Rectangular)
Audio
Compression G.711a, G.711Mu, AAC, G.726
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,

FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,

UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP,

IGMP, SNMP

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Maximum User Access 10 Users / 20 Users
Edge Storage Network Attached Storage (NAS)

Local PC for Instant Recording

Micro SD Slot, maximum 128 GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software SmartPSS, DSS
Smart Phone IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility

(EMC)

FCC CFR 47 Part 15 Subpart B
Interface
Audio Input: Built-in Microphone
Electrical
Power Supply 12 VDC, 1 A or PoE (IEEE802.3af, Class 0)
Power Consumption < 8.5 W
