DH-IPC-HCBW8442N

DH-IPC-HCBW8442N
Specifications Quick Start Guide Manual Firmware

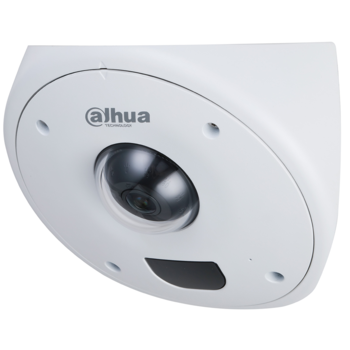

DH-IPC-HCBW8442N HCB8442N Image web.png
Series: Pro
Body: Corner Dome
Image Sensor: 1/1.8-in. 4 MP CMOS
Resolution: 4 MP, 2688(H) x 1520(V)
Angle of View: Horizontal: 135°
Vertical: 90°
Lens Type: Fixed
Focal Length: 2.5 mm
Min. Illumination: Color: 0.004 lux at F2.0 (1/3 s, 30 IRE)
0 lux at F2.0 (IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 10 m (32.81 ft)
WDR: 140dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264,
H.264B, H.264H, MJPEG
Audio Compression: G.711a, G.711Mu, AAC, G.726
Frame Rate: 4 MP (2688 x 1520) at 30 fps
Multi-Streaming: 3 Streams
IVS: Motion, Scene Change, Abandoned/Missing Object,
Fast Moving, Parking Detection, Crowd Gathering,
Loitering Detection, Heat Map
Analytics+: People Counting, Perimeter Protection
ONVIF: Yes
Audio In: One (1) Channel plus a Built-in Microphone
Audio Out: One (1) Channel
Memory Slot: Micro SD Slot, maximum 256 GB
Alarm In: One (1) Channel (5 mA, 5 VDC)
Alarm Out: One (1) Channel (300 mA, 12 VDC)
IP Rating: 67
IK Rating: 10+50J
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 95% RH
Power: 12 VDC or PoE (IEEE 802.3af, Class 0)
< 11.5 W
ePoE: No

Features

  • 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 4 MP (2688 x 1520) at 30 fps, 2.5 mm Fixed Lens
  • Starlight+ Technology for Low-light Applications
  • Analytics+ Functions — Perimeter Protection and People Counting
  • Ultra Wide Dynamic Range (140 dB) and Day/Night IR Cut Filter
  • Built-in Microphone
  • Maximum IR LED Distance 10 m (32.81 ft), 940 nm Wavelength
  • ArcticPro Series Camera - Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10+50J Vandal Resistance
  • Five-year Warranty

IVS Features

  • Tripwire
  • Intrusion
  • Abandoned Object
  • Fast Moving
  • Parking Detection
  • Crowd Gathering Estimation
  • Missing Object
  • Loitering Detection
  • People Counting
  • Heatmap

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Product Images

Product Box Box Contents Wire Harness Reset Button SD-Card Slot
Product Box Box Contents Wire Harness Reset Button SD-Card Slot
