USA/IPCamera/Ultra/IPC HDW8341XN 3D S2


Specifications Quick Start Guide Manual Firmware

Note: You must upload both baseline firmware and algorithm firmware to get the latest firmware version. The update process for algorithm firmware is the same as baseline firmware update.

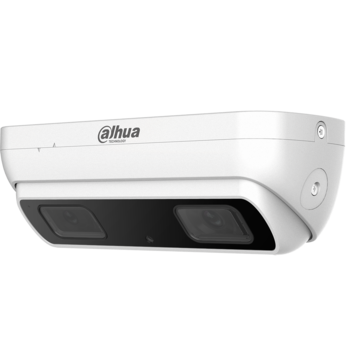

DH-IPC-HDW8341XN-3D-S2 DH-IPC-HDW8341XN-3D-S2.png
Series: Ultra
Body: Dual Sensor
Image Sensor: Two (2) 1/2.8-in. 3 MP CMOS Sensors
Resolution: 2048 (H) x 1536 (V)
Angle of View: Horizontal: 137°
Vertical: 114°
Lens Type: Fixed
Focal Length: 2.8 mm, each lens
Min. Illumination: Color: 0.009 lux at F1.8 (1/3 s, 30 IRE)
Color: 0.08 lux at F1.8 (1/30 s, 30 IRE)
0 lux at F1.8 (IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 10.0 m (32.81 ft)
WDR: Digital WDR
Video Compression: H.265, H.264H, MJPEG (Sub Stream only)
Audio Compression: G.711a, G.711Mu, AAC, G.726
Frame Rate: 3 MP at 25 fps
Multi-Streaming: 3 Streams
IVS: Motion, Heat Map
(The Heat Map and the People Counting
cannot be used at the same time,
only one analytic feature can be used at a time.)
Audio In: Two (2) Channels, RCA
One (1) Built-in Microphone
Audio Out: One (1) Channel, RCA
Memory Slot: Micro SD Slot, maximum 128 GB
Alarm In: Two (2) Channels
Alarm Out: Two (2) Channels
IP Rating: 67
IK Rating: -
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 95% RH
Power: 12 VDC, 1 A or PoE (802.3af, Class 0)
< 12 W
ePoE: No


  • Two (2) 1/2.8-in. 3 MP Progressive-scan CMOS Sensors
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • 3 MP (2048 x 1536) at 25 fps; 2.8 mm Fixed Lens
  • Advanced, Accurate People Counting: Supports Line Crossing and Regional People Counting
  • ArcticPro Series Camera - Operational down to –40° C (–40° F)
  • Day/Night (ICR) IR Cut Filter
  • Built-in Microphone
  • Maximum IR Length 10 m (33 ft)
  • Intelligent Video System with Advanced Business Analytics
  • IP67 Ingress Protection
  • 5-year Warranty (for products sold through an authorized Dahua dealer)


Intelligent Features


WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Product Images

Product Box Box Contents Wire Harness Reset Button SD-Card Slot
Product Box Box Contents Wire Harness Reset Button SD-Card Slot
