DHI-NVR42A08-8P

DHI-NVR42A08-8P
Specifications Quick Start Guide Manual Firmware
Coming Soon

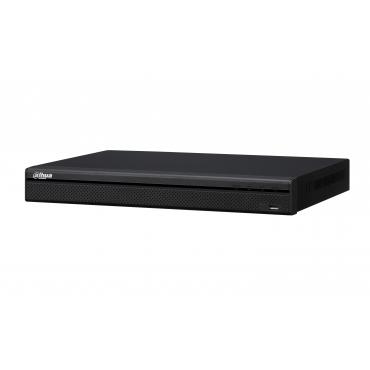

DHI-NVR42A08-8 DHI-NVR42A04-P.jpg
Series: Lite
Compression: Smart H.264+ /MJPEG
Channels: 8
Input Bandwidth: 200Mbps
Record Bandwidth: 200Mbps
Video Output: 1 HDMI, 1 VGA
HDD: 2 SATA III Ports
Up to 12 TB capacity for each HDD
RAID: -
eSATA: 0
Mini SAS: 0
Audio In: One (1) Channel, RCA
Audio Out: One (1) Channel, RCA
Alarm In: 4
Alarm Out: 2
Network: 1 Gigabit Port
POE: 8 ports (IEEE802.3at/af)
USB: 1 USB 3.0, 1 USB 2.0
Power: 100 to 240 VAC, 50/60Hz
<20W (No HDD)
IVS: Yes, maximum of (4) IP channels
Fisheye Dewarp: No
POS: No

Features

  • Up to 8/16/32 channel IP camera input
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview&playback
  • HDMI/VGA simultaneous video output
  • 4/8/16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
  • Support IPC UPnP,8PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Compression

Intelligent Features

Interfaces

SystemUI Old WebUI Old SmartPSS DSS Express S
SystemUI Old WebUI Old SmartPSS DSS Express S

Front Panel

HCVR42XXA-S2HCVR4216AN-S2 HCVR52XXA-S2 Front Panel.jpg

Back Panel

NVR42-8P-4K Series

The NVR42-8P-4K series rear panel is shown as below.


Icon

Port Name

Function

Power socket

/

Input AC 220V.

Power switch

/

Power on/off button.

PoE  PORTS

PoE port

Built-in Switch,support PoE. The PoE PORTS can provide power to the network camera.

The 8 PoE ports series product can support 48V 120W.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

USB3.0 port

USB3.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS-232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

  • Bidirectional talk output.
  • Audio output on 1-window video monitor.
  • Audio output on 1-window video playback.

1~4

Alarm input port 1~4

  • They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).
  • When your alarm input device is using external power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

N1,N2

Alarm output port 1~2

  • 2 groups of alarm output ports.(group 1:port NO1~C1, group 2:port NO2~C2). Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.
  • NO:Normal open alarm output port.
  • C:Alarm output public end.

C1~C2

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.
