N54A4P
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
| Series: | Pro |
| Compression: | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Channels: | 24 |
| Input Bandwidth: | 320Mbps |
| Record Bandwidth: | 320Mbps |
| Video Output: | Two (2) HDMI Ports:
One (1) VGA Port (1080p) |
| HDD: | Four (4) SATA III Ports, Up to 10 TB capacity for each HDD |
| RAID: | - |
| eSATA: | 1 |
| Mini SAS: | 0 |
| Audio In: | One (1) Channel, RCA |
| Audio Out: | One (1) Channel, RCA |
| Alarm In: | 16 |
| Alarm Out: | 6 |
| Network: | 1 Gigabit Port |
| POE: | 24 Ports (IEEE802.3af/at) |
| USB: | 2 USB 3.0, 1 USB 2.0 |
| Power: | 100 VAC to 240 VAC, 50/60 Hz <18W (No HDD) |
| IVS: | Yes (All Channels) |
| Fisheye Dewarp: | One (1) Channel of 12 MP |
| POS: | Yes |
Features
- Smart H.265+ and Smart H.264+ Video Compression
- Maximum 320 Mbps Incoming Bandwidth
- Up to 12 MP Resolution for Preview and Playback
- Support for IPC and UPnP Protocols
- 24 PoE Ports
- Customized Live View Layout with Support for Panoramic Displays
- Intelligent Video System with Business Analytics
- 3D Intelligent Positioning with Dahua PTZ Cameras
Compression
Intelligent Features
Abandoned/Missing
Tripwire
Intrusion
Scene Change
SMD
Perimeter Protection
Face Detect
Face Recognition
People Counting
Heatmap
LPC
Thermal IVS
Interfaces
|
|
|
|
|---|---|---|---|
| SystemUI New | WebUI New | SmartPSS | DSS Express S |
Product Images
|
|
|

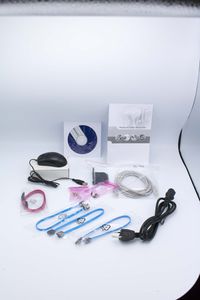

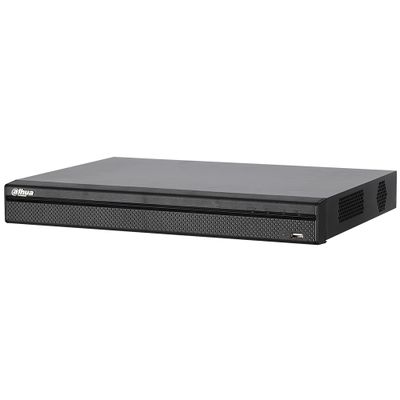

| Box Contents | Front Panel | Back Panel |
|---|
