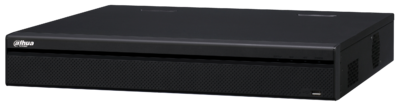

N54B3P N54B3P.png
Series: Pro
Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Channels: 16
Input Bandwidth: 320Mbps
Record Bandwidth: 320Mbps
Video Output: Two (2) HDMI Ports
Two (2) VGA Ports
HDD: 4 SATA III Ports,
up to 10 TB capacity for each HDD
eSATA: 1
Mini SAS: 0
Audio In: One (1) Channel, RCA
Audio Out: Two (2) Channels, RCA
Alarm In: 16
Alarm Out: 6
Network: 1 Gigabit Port
POE: 16 Ports (IEEE802.3af/at)
USB: 2 USB 3.0, 1 USB 2.0
Power: 100 VAC to 240 VAC, 50/60 Hz
<17.5W (No HDD)
IVS: Yes (All Channels)
Fisheye Dewarp: Yes
POS: Yes


  • Smart H.265+ and H.264 Dual Codecs
  • Maximum 320 Mbps Incoming Bandwidth
  • Up to 12 MP Resolution for Preview and Playback
  • Ports 1 to 8 Support ePoE and EoC Signal Transmission, up to 800 m (2524 ft)
  • HDMI and VGA Simultaneous Video Output
  • Intelligent Video System
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)


Intelligent Features
