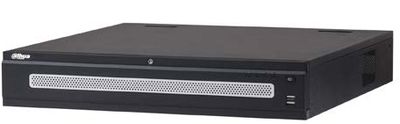

DHI-NVR6A08-128-4KS2
Features
- Intel Processor
- Max 128 IP Camera Inputs with IVS Recording
- Max 384 Mbps Incoming Bandwidth
- Up to 12 MP Resolution for Preview and Playback
- Supports RAID 0 /1/5/6/10/50/60
- iSCSI for Expanded Storage Space
- Smart Tracking
- Intelligent Video System with Business Analytics (two IP channels)
Compression
Firmware
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Intelligent Features
People Counting
Heatmap
Face Recognition
Tripwire
Intrusion
Abandoned/Missing
Specifications
| Specification | |
| System | |
| Main Processor | Intel Quad-core Processor |
| Operating System | Embedded LINUX |
| Display | |
| Interface | 2 HDMI (up to 3840 x 2160, Different Source), |
| 1 VGA | |
| Resolution | 3840 × 2160 , 1920 × 1080 , 1280 × 1024, |
| 1280 × 720 , 1024 × 768 | |
| Multi-screen | 1st Screen: 1/4/8/9/16/25/36 |
| Display | 2nd Screen: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), |
| Video Loss and Camera Blank | |
| Alarm Input | 16 Channel, Low Level Effective, Green Terminal Interface |
| Relay Output | 8 Channel, NO/NC Programmable, Green Terminal Interface |
| Tracking Trigger Event | Targeting, Zoom, Tracking, Recording, Snapshot, Alarm, etc. |
| Playback and Backup | |
| Playback | 128 Mbps in Raid 5 Mode |
| 64 Mbps in single HDD Mode | |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate tosecond) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device |
| Storage | |
| Internal HDD | 8 SATA III Ports, Up to 48 TB |
| HDD Mode | Single, Raid 0/1/5/6/10/50/60 (Support Global HDD Hot-spare) |
| eSATA | 1 eSATA Port |
| Auxiliary Interface | |
| Front Cover | Support Hot-swap |
| USB | 4 USB Ports (2 USB 2.0 , 2 USB 3.0 ) |
| RS232 | 1 Port for PC Communication and Keyboard |
| RS485 | 1 Port for PTZ Control |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Audio and Video | |
| IP Camera Input | 128 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Recording | |
| Compression | H.265/H.264/MJPEG |
| Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, |
| 1.3 MP, 720p | |
| Record Rate | 384 Mbps |
| Bit Rate | 1 Kbps to 20 Mbps per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop |
| Record Interval | 1 to 120 min (default: 60 min), |
| Pre-record: 1 to 30 sec, Post-record: 10 to 300 sec | |
| Network | |
| Interface | 2 RJ-45 Ports (10/100/1000 Mbps) |
| Ethernet Port | 2 Ethernet Ports Joint Working or 2 Independent 1000 Mbps Ethernet Ports |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, CGI Conformant |
| Electrical | |
| Power Supply | 110 to 240 VAC, 50/60 Hz |
| Power Consumption | < 20 W, without HDD |
| Environmental | |
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 86 to 106 kpa |
| Storage Conditions | -20°C to +70°C (-4°F to +158°F), 0 to 90% RH |
| Construction | |
| Dimensions | 444.0 mm × 454.90 mm × 90.40 mm |
| (17.4 in. x 17.9 in. x 3.5 in.) | |
| Net Weight | 9.0 kg (19.80 lb), without HDD |
| Gross Weight | 10.50 kg (23.10 lb) |
| Installation | 19-in. Rack-mounted (includes rack mount ears) |
| Certifications | |
| FCC | SEFD1602115 |
| Intelligence | |
| IVS triggers an alarm and takes a defined action for the following events: | |
| Standard Features | Tampering with the camera. |
| Error writing to an onboard Micro SD card. | |
| Error sending or receiving data over the network. | |
| Unauthorized access to the camera. | |
| Premium Features | |
| Motion | An object moves through any part of the scene. |
| Tripwire | A target crosses a user-defined line. |
| Intrusion | A target enters or exits a defined perimeter. |
| Abandoned/Missing Object | A target leaves an object in designated area, or a target removes an object from the same designated area. |
| Advanced Features | |
| Facial Detection | Detects and captures a snapshot of a human face in a defined area within a scene. |
| Heat Map | Generates a visual representation of data. |
