Video Intercom/Products/VTO1210C X-S


Specifications Manual Main Firmware MCU Firmware Voice Firmware

Build Date: 07-08-2019

Build Date: 03-05-2019

Build Date: 04-20-2019


  • 1.3 MP Wide Angle Camera with Night Vision
  • Built-in Microphone with Two-way Talk
  • Connect Outdoor Stations to an NVR to Record Call Sessions from the Indoor Monitor
  • Performs Door Unlock by Card
  • Supports Secure Password Entry
  • Stainless Steel Panel can be Surface- or Flush-mounted
  • IP54 Ingress Protection and IK07 Vandal Resistance

Firmware Update Instructions

Firmware Update Download


Configuration Limitations

  • 20 Apartment VTO maximum
  • 200 VTH maximum

Password Reset

Important: Must be on version 2017-04-02 v3.100.0000.0.R or higher.

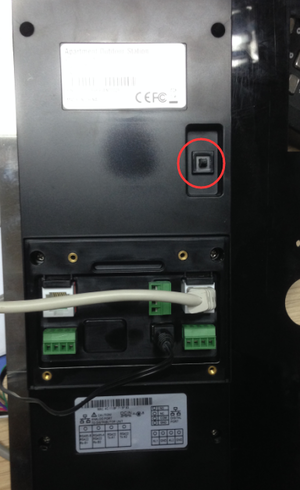

Press the tamper button 5 times, you'll hear the siren and then a quick beep indicating that the reset was successful

VTO1210C-X Reset.png

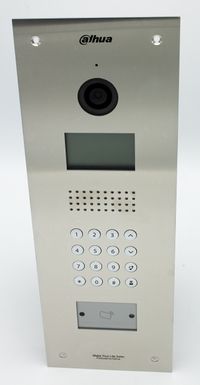

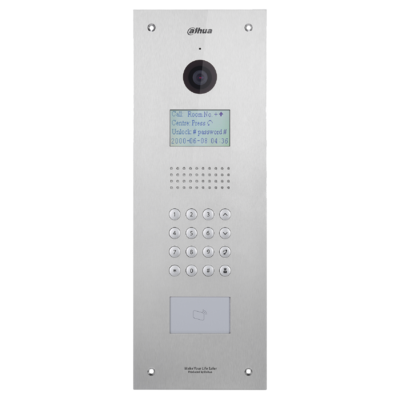

Product Images

Product Box Box Contents Front Back
Product Box Box Contents Front Back
