How to Setup and program Modules on DHI-VTO4202F-P-S2

Description

This guide will go over the wiring and programming of the modular accessories for our DHI-VTO4202F-P-S2

The only programmable Module in our product line is the Five-Button Call Panel.

Prerequisites

Video Instructions

Step By Step Instructions

Physical Wiring of the Modules

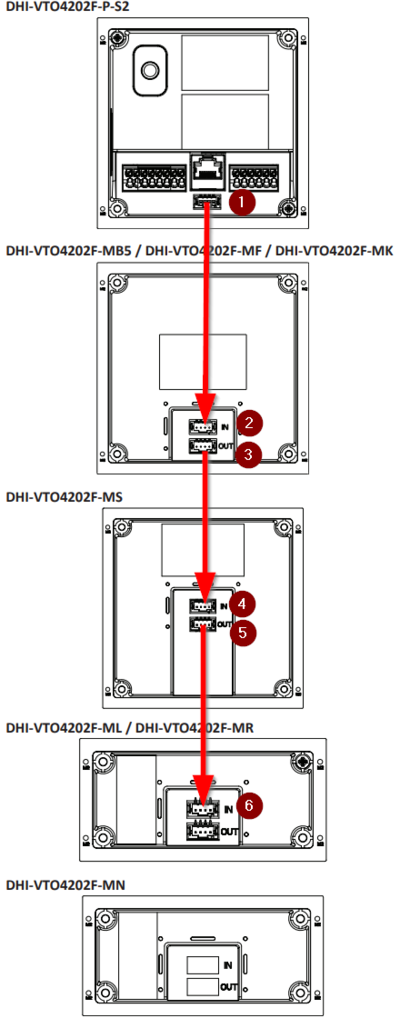

You will always start at the DHI-VTO4202F-P-S2 OUT, then go to the next module on the IN port. Continue this pattern for the rest of the Modules.

VDP Module Wiring.png

Programming the Modules

1. Go to the DHI-VTO4202F-P-S2 WEBUI

How to Setup and program Modules on DHI-VTO4202F-P-S2-1.png

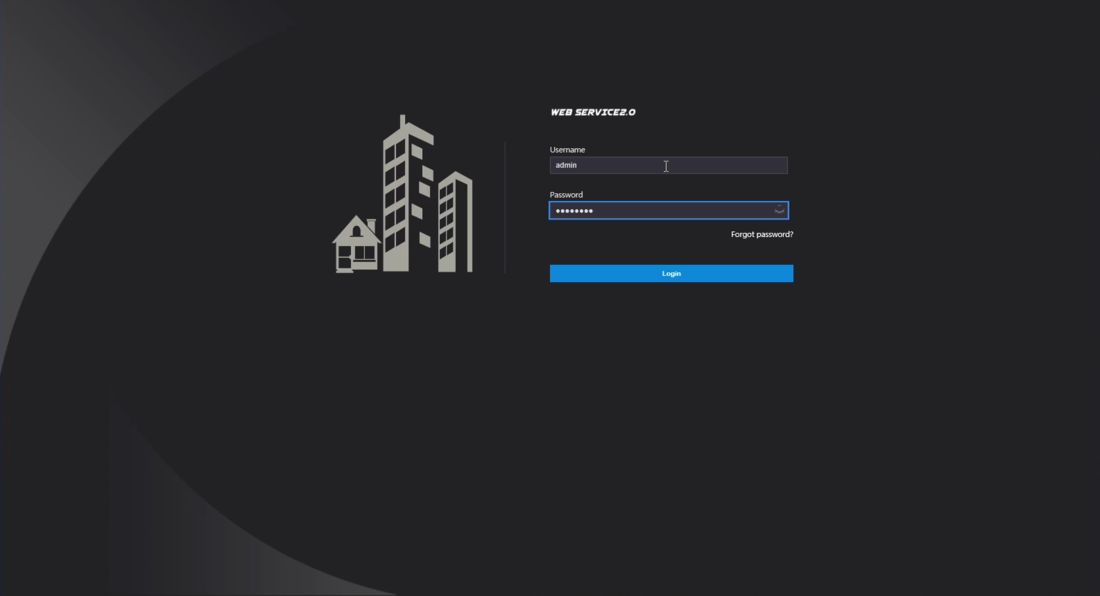

2. Login to the VTO

How to Setup and program Modules on DHI-VTO4202F-P-S2-2.png

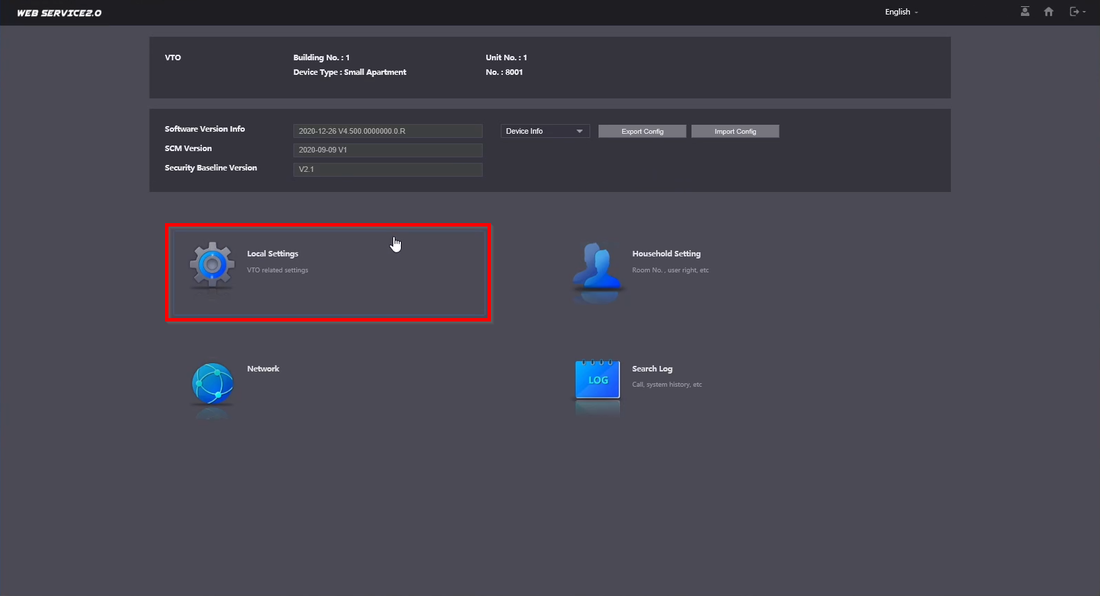

3. Go to Local Settings

How to Setup and program Modules on DHI-VTO4202F-P-S2-3.png

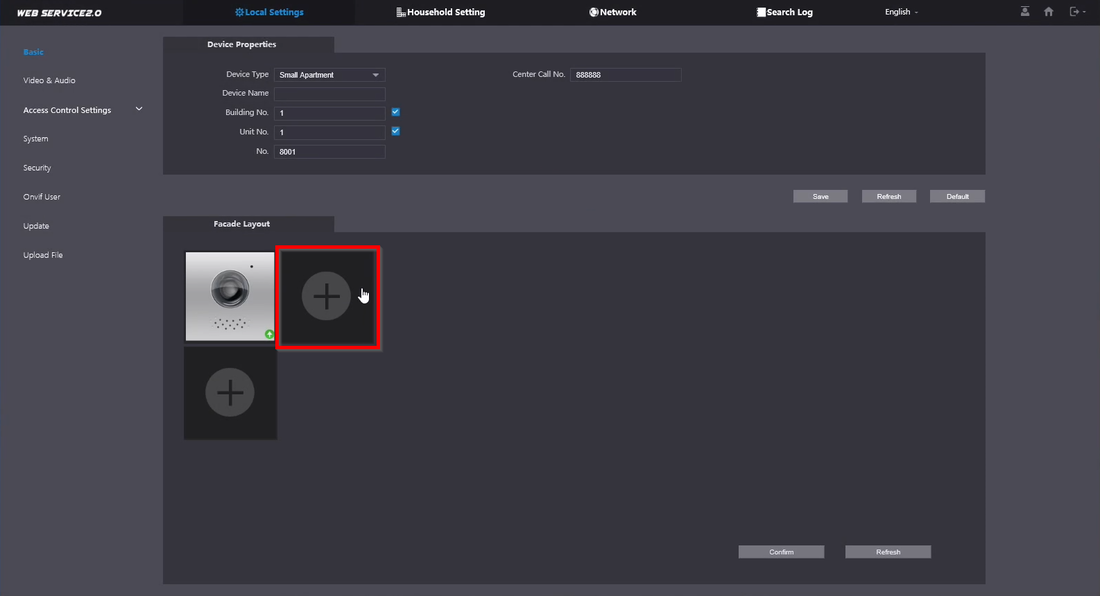

4. Click on the next available entry under Facade Layout

How to Setup and program Modules on DHI-VTO4202F-P-S2-4.png

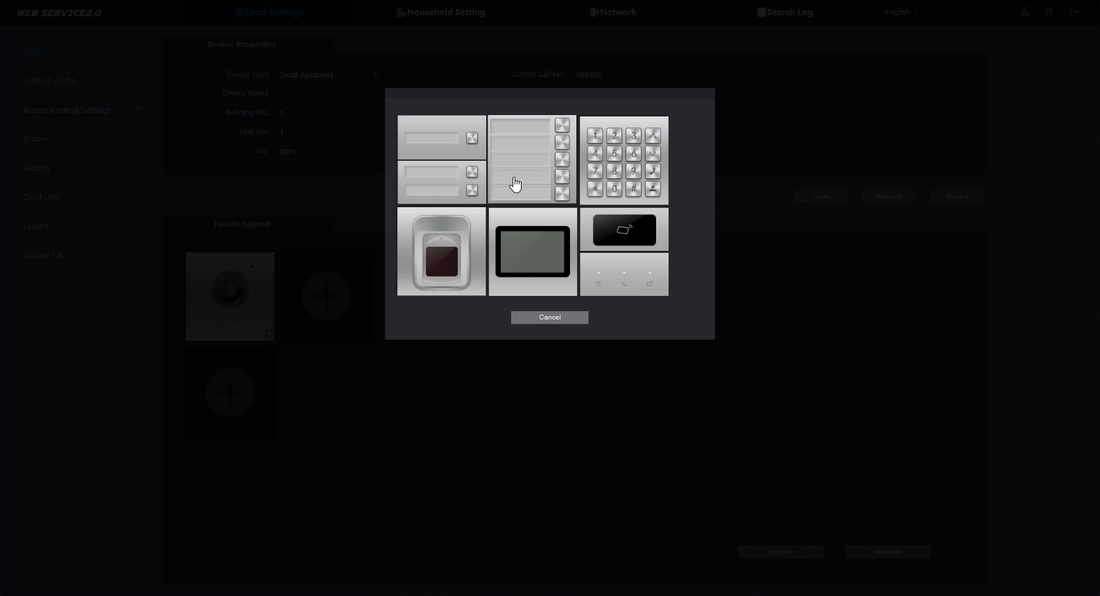

5. Select the Modules in the order you have them Physically wired

How to Setup and program Modules on DHI-VTO4202F-P-S2-5.png

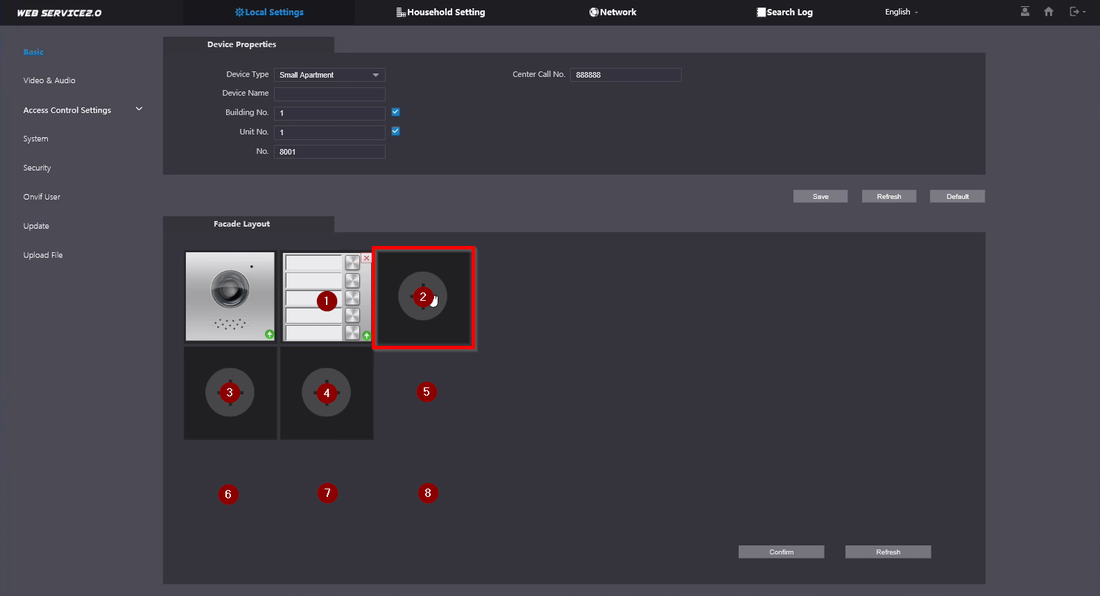

6. If you have multiple modules select the next empty slot. The order is labeled on the image below

How to Setup and program Modules on DHI-VTO4202F-P-S2-6.png

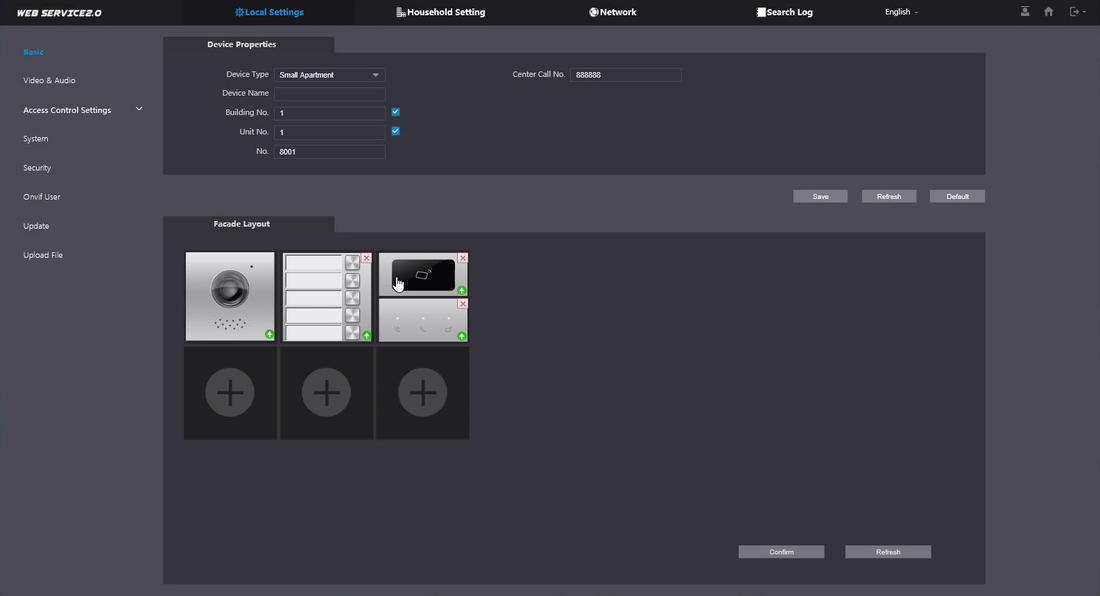

7. The modules will populate once added

How to Setup and program Modules on DHI-VTO4202F-P-S2-7.png

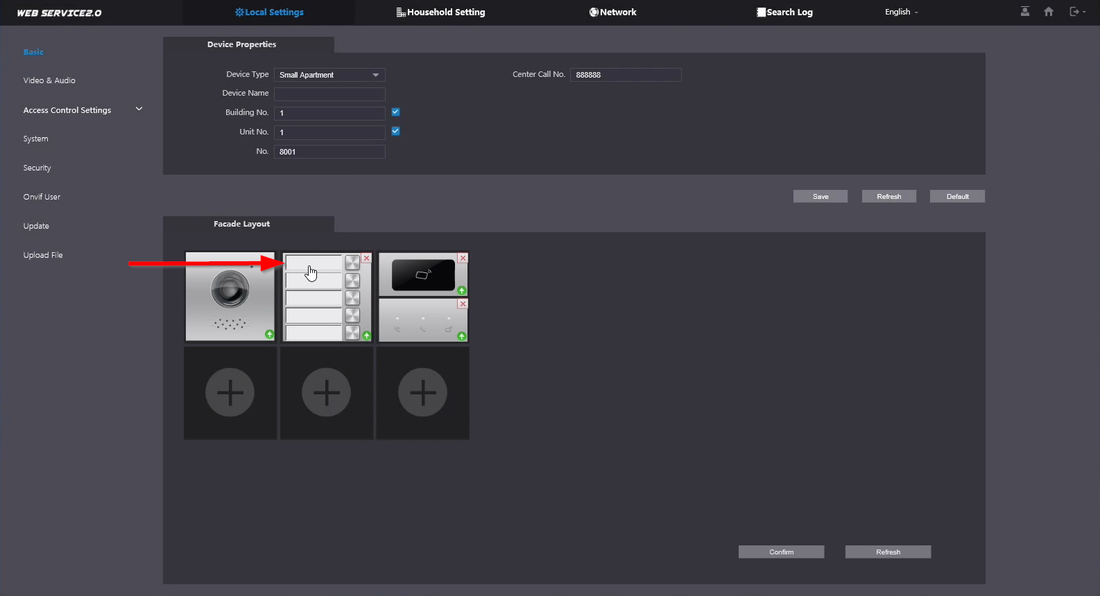

8. To program the Five-Button Call Panel select the empty box

How to Setup and program Modules on DHI-VTO4202F-P-S2-8.png

9. Pick the Room Number you'd like to link it to

How to Setup and program Modules on DHI-VTO4202F-P-S2-9.png

10. Select the next box if you have several Rooms you'd like to link

How to Setup and program Modules on DHI-VTO4202F-P-S2-10.png

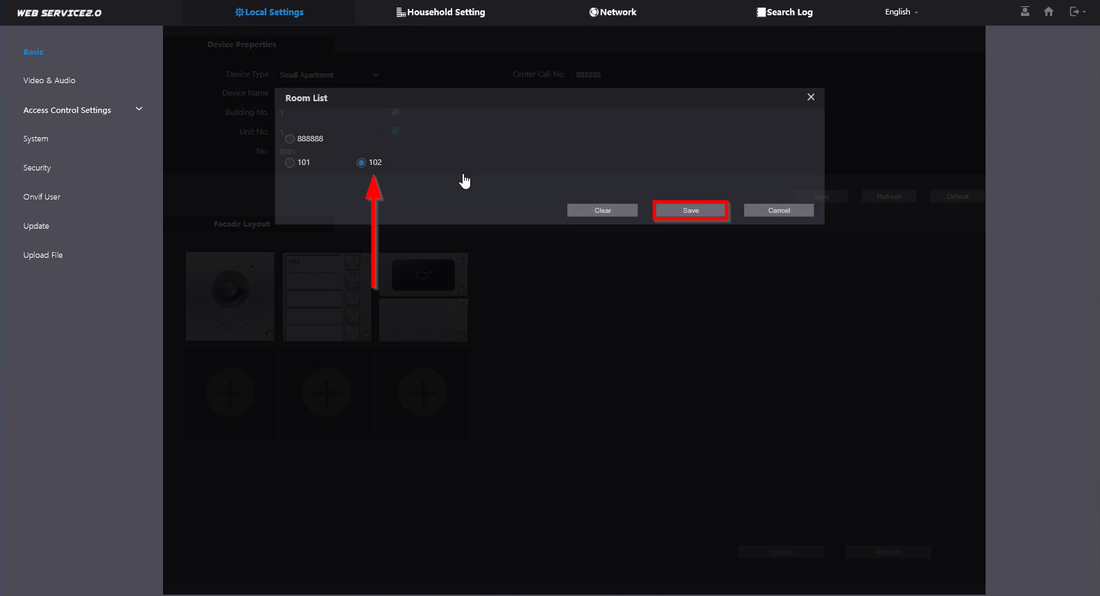

11. Select the second room number

How to Setup and program Modules on DHI-VTO4202F-P-S2-11.png

12. In order to save the programming you need to click on Confirm

How to Setup and program Modules on DHI-VTO4202F-P-S2-12.png
