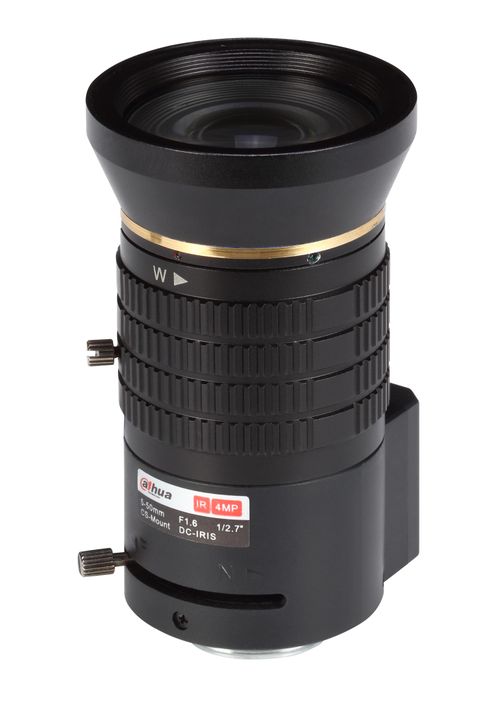

DH-PLZ1140-D
Features
- Image Format: 1/2.7-in.
- Focal Length: 5 mm to 50 mm
- Lens Pixel: 4 MP
- Aperture: F1.6
- Field Angle: W: 70° x 50° x 37.5°, T: 7° x 5.6° x 4.2°
- M.O.D.: 1 m
- TV Distortion: < -15.1%
- IR Correction: Yes
- Lens Control
- Focus: Manual
- Zoom: Manual
- Iris: DC-Iris
- Mount: CS
- Dimension: ø47.0 mm x 85.90 mm (ø1.85 in. x 3.38 in.)
- Weight:195 g (0.43 lb)
- Operating Temperature: -30°C to +70°C (-22° F to 158° F), < 90% RH
Specifications
Model | DH-PLZ1140-D | |
Parameter | ||
Image format | 1/2.7” | |
Focal length | 5-50mm | |
Lens pixel | 4MP | |
Aperture | F1.6 | |
Field Angle(D*H*V) | 1/2.7 | W: 70°(D)x50°(H)x37.5°(V)~T: 7°(D)x5.6°(H)x4.2°(V) |
1/3" | W: 52°(D)x41.6°(H)x31.2°(V)~T: 6.4°(D)x5.1°(H)x3.8°(V) | |
M.O.D. | 1m | |
TV Distortion | <-15.1% | |
IR Correction | Yes | |
Lens Control | Focus | Manual |
Zoom | Manual | |
Iris | DC-Iris | |
Mount | CS | |
Dimension | ∅47x85.9mm | |
Weight | 195g | |
Operating temperature | -30ºC~+70ºC | |
Humidity | <90% RH |
