DHI-VTO2111D-WP

These instructions are for Generation 1, IP-based Video Intercom Devices only.
Icon Name Generation Technology SIP 2.0 Example Device 1 Example Device 2 Identifying Characteristic PC Software Mobile App
Gen1-IP Gen 1 IP Non-SIP VTH1550CH VTO2111D-WP No "-2" or "-S" SmartPSS gDMSS or iDMSS
DHI-VTO2111D-WP
Specifications Manual Firmware

Build Date: 07-31-2018

Features

  • 1/4-in. 1 MP CMOS Imager
  • Wide-angle Field of View
  • Night Vision
  • Voice Indication
  • Remote Intercom with Mobile Application
  • Surface-mounted
  • Default IP address 192.168.1.110

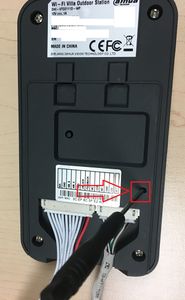

Reset Button


How To
