L26N Physical Install

Description

This guide covers the physical install and first time setup of the IPC-L26N

Prerequisites

Video Instructions

Step by Step Instructions

Physical installation reference image:

L26 Physical Install - 0.jpg

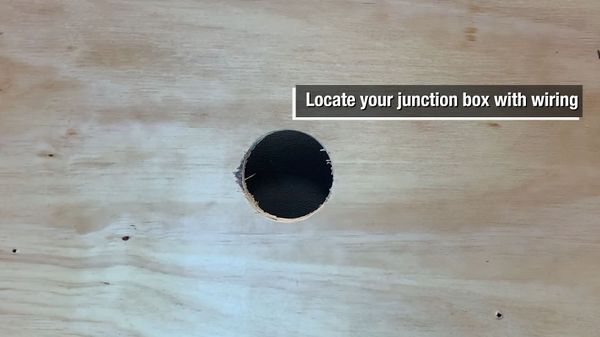

1. Locate the junction box with wiring

L26 Physical Install - 1.jpg

2. Find the wall mount in the camera box

L26 Physical Install - 2.jpg

3. Attach the wall mount to the junction box or wall

L26 Physical Install - 3.jpg

L26 Physical Install - 3-1.jpg

4. Use the hooks to assist in mounting

L26 Physical Install - 4.jpg

The purpose of the hangers or hooks are to wire the camera freely

L26 Physical Install - 5.jpg

5. Place one part of hander/hook on the wall mount and the other on the Camera Lock Collar

L26 Physical Install - 6.jpg

6. Next step is connecting the power wires.

Important Notice: Make sure that power is turned off BEFORE you start connecting wires

L26 Physical Install - 7.jpg

7. Identify the cables

  • White
  • Black
  • Green/Bare Copper

L26 Physical Install - 8.jpg

8. Find the associated wire and twist them together

L26 Physical Install - 9.jpg

9. After twisting together, place the wire nut on and twist again.

For extra security please apply electrical tape for safety

L26 Physical Install - 10.jpg

10. The camera will now be mounted

L26 Physical Install - 11.jpg

11. Take off the hanger/hook and hold the camera in one hand

L26 Physical Install - 12.jpg

12. Take the mounting screw and place it through the hole

L26 Physical Install - 13.jpg

13. Ensure that all the wires are between the mounting plate and camera or in the junction box

L26 Physical Install - 14.jpg

14. Place the camera on the wall mount

L26 Physical Install - 15.jpg

15. Screw in the mounting screw

L26 Physical Install - 16.jpg

16. Turn on the power

Setup will continue using a phone running the mobile app iGDMSS / iDMSS

L26 Physical Install - 17.jpg

17. In gDMSS / iDMSS scan the QR code of the camera

Then follow the directions from the app to complete setup of the device

You can also reference this guide for using the mobile app to complete setup of the device: How To Add LincX2PRO Device to Mobile App

L26 Physical Install - 18.jpg

18. Angle the camera as desired

L26 Physical Install - 19.jpg
