Difference between revisions of "USA/IPCamera/Pro/N84CL52"

(→‎N84CL52)
Line 29: Line 29:

====Firmware Update Download====

====Firmware Update Download====

{{Template:DH_IPC-HX5X3X-Rhea}}

{{Template:DH_IPC-HX5X3X-Rhea}}
−
<!--
+

−
<html><iframe src="https://docs.google.com/spreadsheets/d/1ag1rC1sdDUKLJj-6JtcBo8gzFaN6v7IeflXspE5s5ng/pubhtml?gid=286122348&range=E207&amp;single=true&amp;widget=false&amp;headers=false&amp;chrome=false"

−
width="200px"

−
height="50px"

−
frameBorder="0">

−
</iframe></html>

−
-->


===Reset Button and SD===

===Reset Button and SD===

[[File:N44CL52_N44CL53_Reset_SD.png|500px]]

[[File:N44CL52_N44CL53_Reset_SD.png|500px]]
Line 44: Line 38:


===Specifications===

===Specifications===
 +
{| class="wikitable"
 +
|-
 +
!colspan="2"| Camera
 +
|-
 +
| Image Sensor
 +
| 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS
 +
|-
 +
| Effective Pixels
 +
| 3840(H) x 2160(V)
 +
|-
 +
| RAM/ROM
 +
| 512 MB/32 MB
 +
|-
 +
| Scanning System
 +
| Progressive
 +
|-
 +
| Electronic Shutter Speed
 +
| Auto, Manual, 1/3 s to 1/100,000 s
 +
|-
 +
| Minimum Illumination
 +
|Color: 0.06 lux at F1.6 (1/3 s, 30 IRE)
 +
Color: 0.3 lux at F1.6 (1/30 s, 30 IRE)
 +
 +
0 lux at F1.6 (IR on)
 +
|-
 +
| S/N Ratio
 +
| More than 50 dB
 +
|-
 +
| IR Distance Distance
 +
| up to 30 m (98.43 ft)
 +
|-
 +
| IR On/Off Control
 +
| Auto, Manual
 +
|-
 +
| IR LEDs
 +
| 18
 +
|-
 +
! colspan="2"|  Lens
 +
|-
 +
|Lens Type
 +
| Fixed
 +
|-
 +
| Mount Type
 +
| Board-in
 +
|-
 +
| Focal Length
 +
| 2.8 mm
 +
|-
 +
| Maximum Aperture
 +
| F1.6
 +
|-
 +
| Angle of View
 +
| Horizontal: 110°
 +
Vertical: 68°
 +
|-
 +
| Focus Control
 +
| Fixed
 +
|-
 +
| Close Focus Distance
 +
| 0.90 m (2.95 ft)
 +
|}
 +
 +
{| class="wikitable"
 +
|-
 +
! colspan="5"| DORI¹ Distance
 +
|-
 +
! lens
 +
! Detect
 +
! Observe
 +
! Recognize
 +
! Identify
 +
|-
 +
| 2.8 mm
 +
| 69 m (226 ft)
 +
| 28 m (92 ft)
 +
| 14 m (46 ft)
 +
| 7 m (23 ft)
 +
|}
 +


[[Category:Model Specific Pages]]

[[Category:Model Specific Pages]]

Revision as of 23:32, 23 May 2019

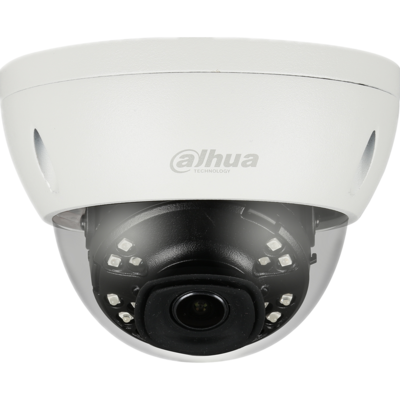

N84CL52



float



Features

  • 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codecs
  • 8 MP at 15 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Enhanced Power and Data Transmission Distances with ePoE
  • True WDR (120 dB) and True Day/Night (ICR)
  • Maximum IR LED Length 30 m (98 ft) with Smart IR
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Firmware

Firmware Update Instructions

Firmware Update Download
Build Date: 07-07-2021

Reset Button and SD

N44CL52 N44CL53 Reset SD.png

Compatible Accessories


Specifications

Camera
Image Sensor 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS
Effective Pixels 3840(H) x 2160(V)
RAM/ROM 512 MB/32 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.06 lux at F1.6 (1/3 s, 30 IRE)

Color: 0.3 lux at F1.6 (1/30 s, 30 IRE)

0 lux at F1.6 (IR on)

S/N Ratio More than 50 dB
IR Distance Distance up to 30 m (98.43 ft)
IR On/Off Control Auto, Manual
IR LEDs 18
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm
Maximum Aperture F1.6
Angle of View Horizontal: 110°

Vertical: 68°

Focus Control Fixed
Close Focus Distance 0.90 m (2.95 ft)
DORI¹ Distance
lens Detect Observe Recognize Identify
2.8 mm 69 m (226 ft) 28 m (92 ft) 14 m (46 ft) 7 m (23 ft)
