8A840WANF

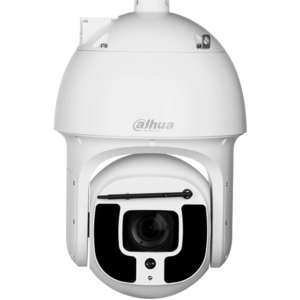

80840WANF Web.png

float


Features

  • 1/1.8-in. 8 MP Progressive Scan STARVIS™ CMOS Sensor
  • Powerful 40x Optical Zoom Lens
  • Smart H.265+ and Smart H.264+ Dual Codecs
  • 8 MP at 30 fps Maximum Resolution
  • Analytics+ Functions — Face Recognition and Perimeter Protection
  • Starlight Technology for Ultra-low Light Sensitivity
  • Maximum IR Distance up to 500 m (1640 ft)
  • Predictive Focus Analysis (PFA) Technology
  • Integrated Smart Wiper
  • Intelligent Video System with Auto-tracking
  • Supports Hi-PoE
  • IP67 Environmental Protection
  • Five-year Warranty (for products sold through an authorized Dahau Dealer)

Compression

Images

  • 8A80WANF WITB Web.png
  • 8A80WANF Wires Web.png

Firmware

Firmware Update Instructions


Firmware Update Download
Build Date: 7-10-2021

PTZ Control Firmware
Build Date: 12-13-2019

Specifications

Camera
Image Sensor 1/1.8-in. STARVIS™ CMOS
Effective Pixels 3840(H) x 2160(V), 8 MP
RAM/ROM 1024 MB / 128 MB
Scanning System Progressive
Electronic Shutter Speed 1/1 s to 1/30,000 s
Minimum Illumination Color: 0.002 lux at F1.4

B/W: 0.0002 lux at F1.4

0 Lux with IR on

IR Distance Distance up to 500.0 m (1640.42 ft)
IR On/Off Control Auto, Manual
IR LEDs 10
Lens
Focal Length 5.6 mm to 223 mm
Max. Aperture F1.4 to F4.8
Angle of View Horizontal: 63.9° to 2.0°

Vertical: 37.2° to 1.2°

Diagonal: 71.2° to 2.4°

Optical Zoom 40x
Focus Control Auto, Manual
Iris Control Auto, Manual
Close Focus Distance 100 mm to 1000 mm (3.93 in. to 39.37 in.)
DORI Distance¹
Detect Observe Recognize Identify
4400 m (14,435 ft) 1740 m (5708 ft) 880 m (2887 ft) 440 m (1443 ft)
PTZ
Pan/Tilt Range Pan: 0° to 360° endless

Tilt: –30° to 90°

Auto Flip 180°

Manual Control Speed Pan: 0.1° to 240° /s

Tilt: 0.1° to 100° /s

Preset Speed Pan: 240° /s

Tilt: 120° /s

Presets 300
PTZ Mode 5 Pattern, 8 Tour (up to 32 presets per tour),

Auto Pan, Auto Scan

Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after

power failure

Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no

command in the specified period

Protocol DH-SD, Pelco-P/D (Auto recognition)
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264,

MJPEG (sub stream only)

Streaming Capability Three (3) Streams
Resolution 8 MP (3840 x 2160), 1080p (1920 x 1080),

1.3 MP (1280 x 960), 720p (1280 x 720),

D1 (704 x 380), CIF (352 x 240)

Frame Rate Main Stream 8 MP, 1080p, 1.3 MP, or 720p at 30 fps
Sub Stream 1 D1 or CIF at 30 fps
Sub Stream 2 1080p, 1.3 MP, or 720p at 30 fps
Bit Rate Control CBR, VBR
Bit Rate H.265 / H.264: 512 K to 8192 Kbps,
Day/Night Auto (ICR), Color, B/W
Backlight Compensation BLC, HLC, True WDR (120 dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual, Sodium Lamp,

Natural, Street Lamp

Gain Control Auto, Manual, Gain Priority, Shutter Priority,

Aperture Priority

Noise Reduction Ultra DNR (2D/3D)
Advanced Features Motion Detection, Region of Interest,

Electronic Image Stabilization (EIS), Defog

Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas
Audio
Compression G.711a, G.711Mu, PCM, G.726, AAC, G722.1, G.729,

MPEG2-Layer2

Network
Ethernet RJ-45 (10 Base-T/100 Base-TX)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,

DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,

802.1x

Interoperability ONVIF Profile S and G, API
Streaming Method Unicast / Multicast
Maximum User Access 20 users
Edge Storage NAS (Network Attached Storage)

Local PC for instant recording

Micro SD Card, maximum 256 GB

Web Viewer Internet Explorer
Management Software Smart PSS, DSS, DMSS
Mobile Operating System IOS, Android
Certifications
CE EN55032, EN55024, EN50130-4
Electromagnetic Compatibility

(EMC)

FCC Part 15 Subpart B

ANSI C63.4- 2014

Interface
Video One (1) BNC (1.0 Vp-p, 75 Ω)
Audio Input: One (1) Channel

Output: One (1) Channel

RS485 One (1)
Alarm Input: Seven (7) Channels

Output: Two (2) Channels

Electrical
Power Supply 24 VAC, 3 A (± 25%), Hi-PoE
Power Consumption 26 W, 42 W with IR on
