Email Notification For High Temperature Alert with DHI-ASI7213X-T1 and DSS Express

Description

This guide will show how to setup Email Notifications for High Temperature Alerts on DSS Express with the DHI-ASI7213X-T1

Note:

• Email is setup using a 3rd party SMTP server configured to DSS Express

• Emails are sent on High Temperature Alerts in this configuration

Prerequisites

• DHI-ASI7213X-T1 Setup
• DSS Express installed

Video Instructions

Step by Step Instructions

Add DHI-ASI7213X-T1 to DSS Express

1. From the Homepage of DSS Express

Click Device

2. Click Add

3. Enter the device details:

• Device Name
• IP Address
• Username / Password

Click Add

4. The device will appear in the list

After a few moments the status will turn to Online

5. Click the pencil icon to edit the device settings

6. Click Video Channel

In the ChannelNumber field enter 1, then click inside the device settings, the Channel should appear in the list

Click the dropdown box under Features and enable the following:

• IVS Alarm
• IR Temperature Measurement
• Face Recognition
• Access Snapshot

Setup Email On DSS Express

1. From the Homepage of DSS Express

Click Config

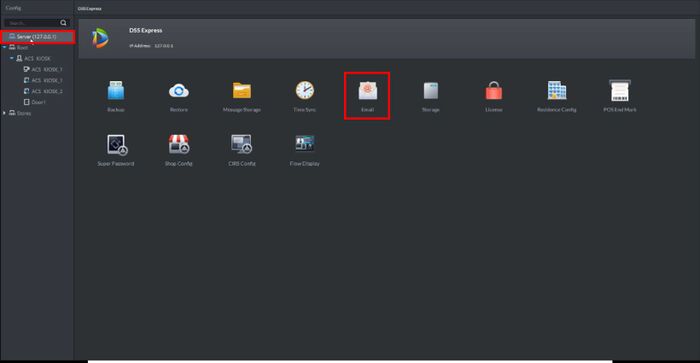

2. Select the server on the left side of the screen

Click Email

3. Click to toggle and Enable

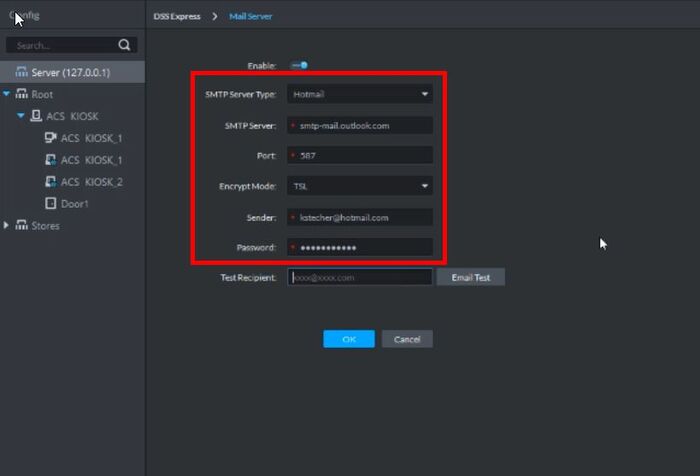

4. Enter the information for the SMTP server being used:

• SMTP Server Type
• SMTP Server - URL of SMTP server
• Port - port for SMTP server
• Encrypt Mode - Encryption Type for SMTP
• Sender - full email address (including @hotmail.com for example)
• Password - password for email account

Please reference this guide for the correct email settings/information for common/popular Email services:

Email Notifications

5. To test the Email function:

• Enter all SMTP Server Info
• Enter an email address in the Test Recipent field
• Click Email Test

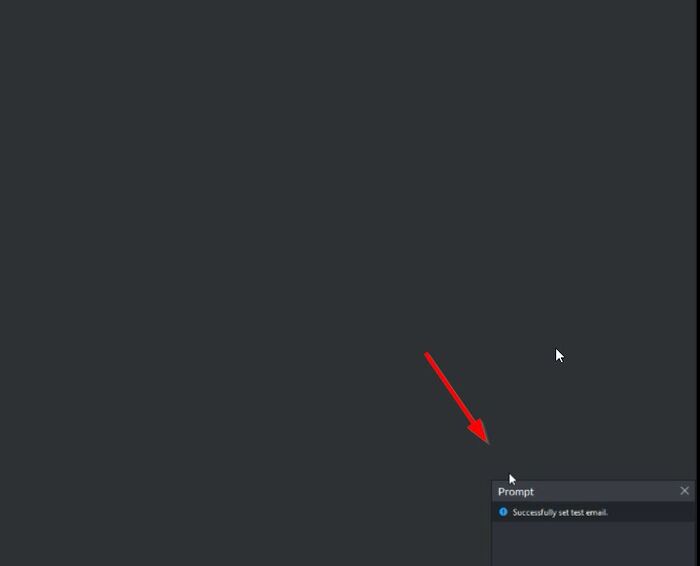

A prompt will confirm a successful test, meaning the Email setup is complete

Click OK to save

Add High Temperature Alarm To Kiosk In DSS Express

From the main menu select Config

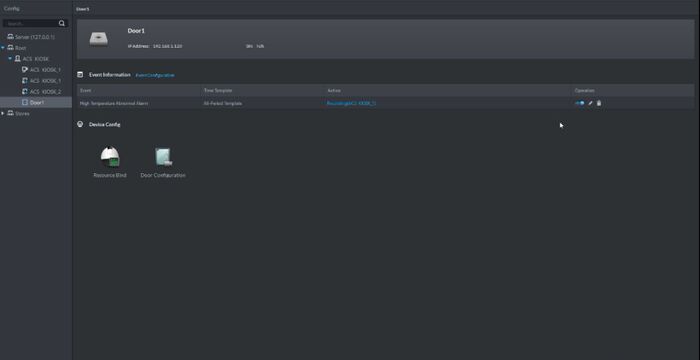

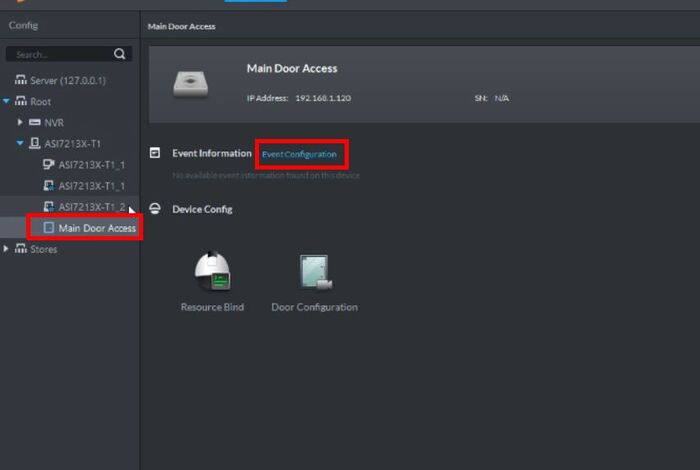

1. Select the DHI-ASI7213X-T1 from the list in the left and expand until you find the Door, left click to select

Click Event Configuration

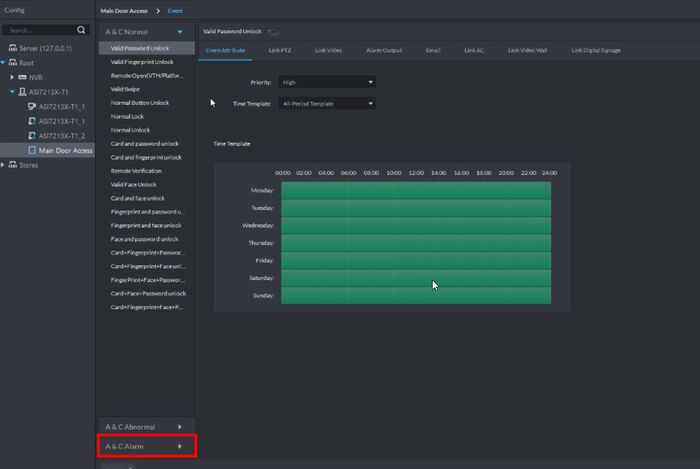

2. Click the A & C Alarm section of the menu

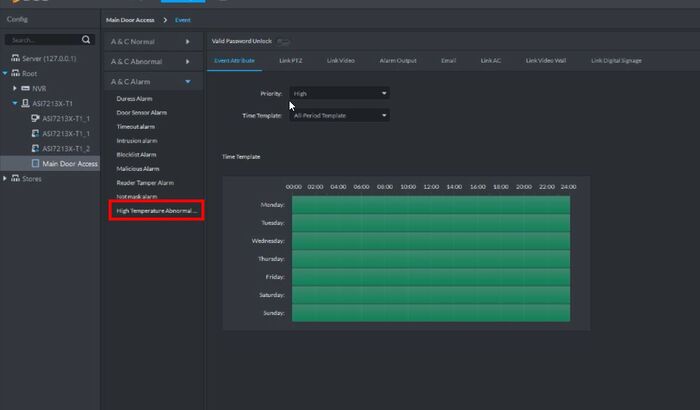

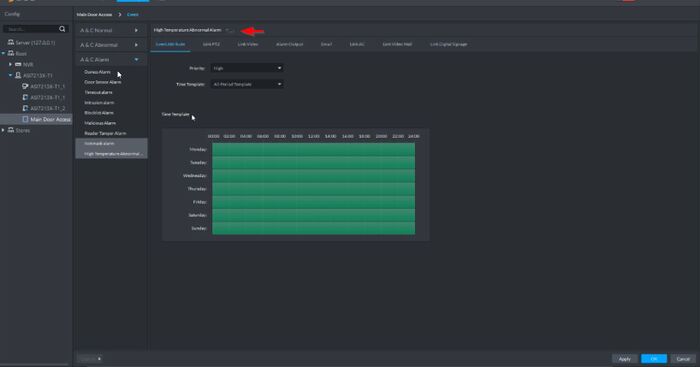

3. Click High Temperature Abnormal

4. Click to toggle/enable the Alarm

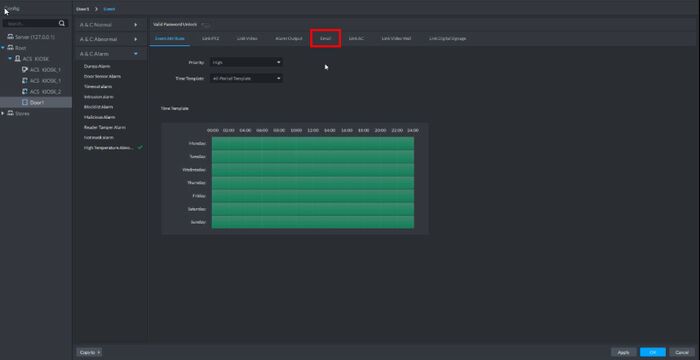

5. Click Email

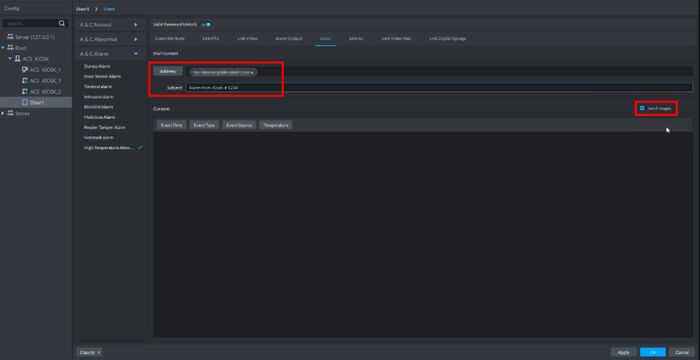

6. Email configuration:

• Enter the email Address(es) in the Address field.

• Enter a Subject for the email being sent out.

• Check the box next to Send images to send a snapshot image as an attachment in the email

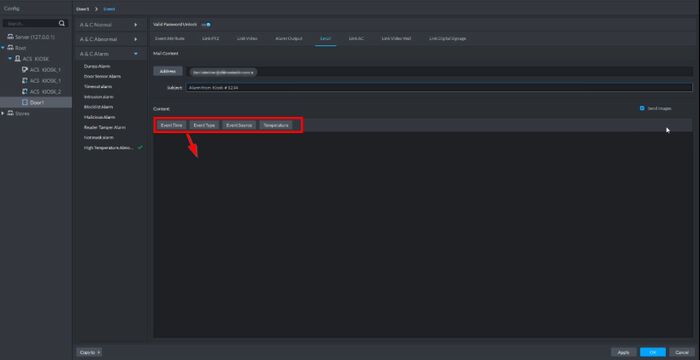

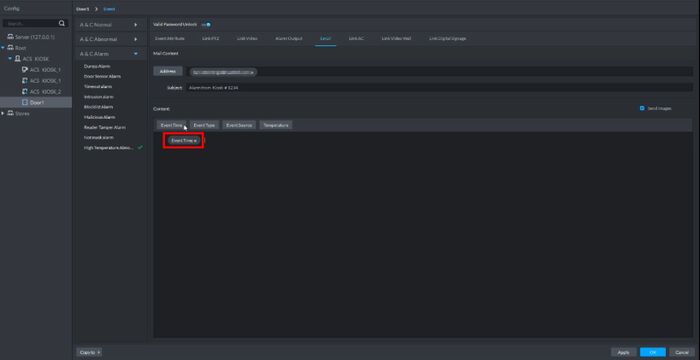

7. Use the interface to build the content of the generated email.

Left click any of the Content to add it to the Email

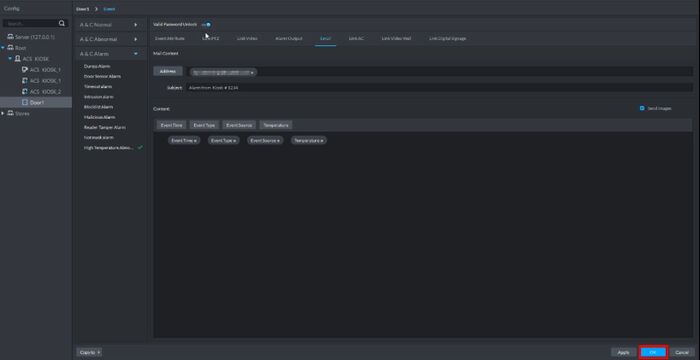

8. Once the email is configured as desired click OK

Example:

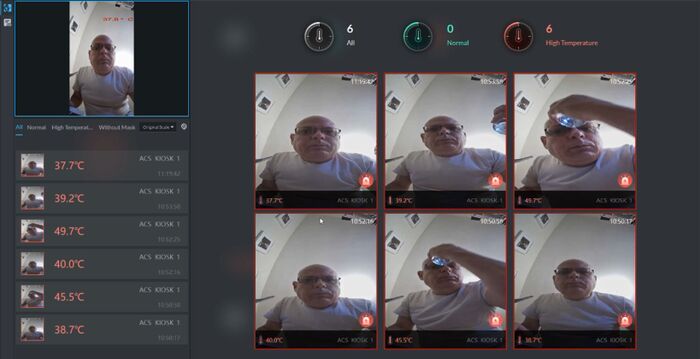

High Temperature Events in Live View:

Email received

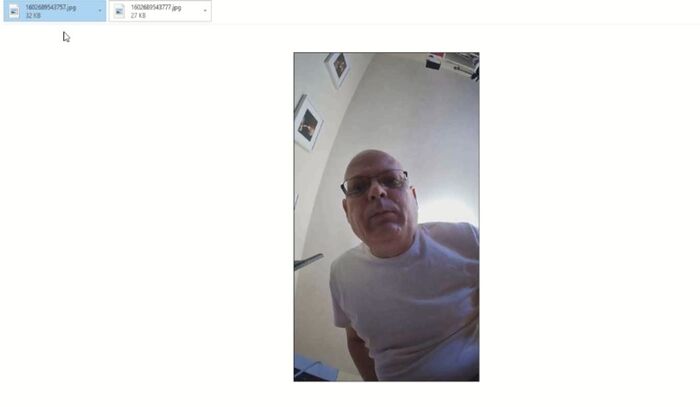

Snapshot as attachment to email
