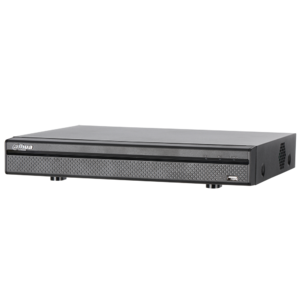

X51A1E
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
Build Date: 11-24-2022
|
| Series: | Lite |
| Compatible Video: | HDCVI/AHD/TVI/CVBS (Auto-detect) |
| HD-CVI/Analog Channels: | 4 |
| IP Channels: | 4 + 2 |
| Video Compression: | Smart H.265+, H.265, Smart H.264+, H.264 |
| HD-CVI/Analog Recording Resolutions: |
Channel 1: • 5 M-N at 10 fps Channels 2 to 4: • 4 M-N, 1080p at 15 fps • 1080N, 720p, 960H, D1, CIF at 30 fps |
| IP Recording Resolutions: | Up to 6 MP |
| Input Bandwidth: | 24 Mbps |
| Video Output: | One (1) HDMI (3840 x 2160) One (1) VGA (1920 x 1080) |
| HDD: | One (1) SATA Ports, up to 10 TB capacity for each disk |
| eSATA: | 0 |
| Audio In: | 4 RCA |
| Audio Out: | 1 RCA |
| Alarm In: | 8 |
| Alarm Out: | 3 |
| Network: | 1 Port (10/100 Mbps) |
| USB: | 2 USB 2.0 Ports |
| Power: | 12 VDC, 2 A, 50/60 Hz <10W (No HDD) |
| IVS: | Yes (All Analog Channels, when IP Channels are Disabled) |
| POS: | No |
| Spot Out/ Video Matrix: | No |
EOL: End of Life
EOL Date: 6/19/2020
Suggested Replacement
Features
- Embedded Processor
- Smart H.265+ and H.264 Dual Codec
- Dual-stream Recording
- 1080p at 15 fps Maximum Recording Resolution
- 4, 8, or 16 HDCVI/AHD/TVI/CVBS Channels
- 4 + 2, 8 + 4, or 16 + 8 IP Channels, up to 6 MP per Channel
- Maximum 24/48/96 Mbps Incoming Bandwidth
- Built-in Smart Search
- Intelligent Video System (one IP channel)
- One (1) SATA HDD Port, up to 10 TB per Hard Disk Drive
- Five-year Warranty (for products sold through an authorized Dahua dealer)*
Compression
Intelligent Features
Abandoned/Missing
Tripwire
Intrusion
Face Detect
Interfaces
|
|
|
|
|---|---|---|---|
| SystemUI New | WebUI New | SmartPSS | DSS Express S |
