DSS/V8/DSS Pro/Instruction/Device Configuration

Revision as of 21:10, 10 August 2021 by Marques.Phillips (talk | contribs) (Step by Step Instructions)

Description

This guide will show how to configure device settings, such as for devices added to DSS Pro.

Prerequisites

  • DSS Pro V8 Server and Client
  • Device(s) connected to the network, added to DSS Pro

Step by Step Instructions

1.Login to DSS Pro Client and then go to Configurations > Device menu.

From Home Select the Configuration menu

DSS Pro Client Home Configurations.jpg

2. Click on Device.

DSS Pro Client Configuration Device.jpg

3. Click Device Configuration

DSS Pro Device Configuration - 1.jpg

Devices that are added to DSS Pro will appear in the Device Tree in the center


4. Expand the device tree and select the channel to configure (for example, the video channel)

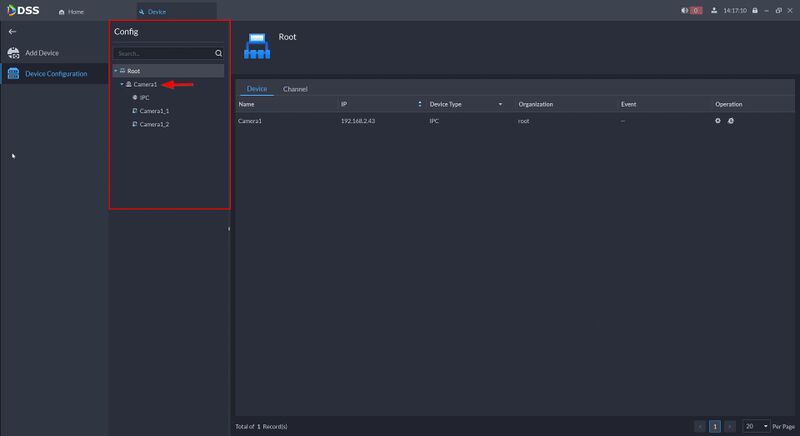

DSS Pro Device Configuration - 2.jpg

5. Configure Device settings as desired:

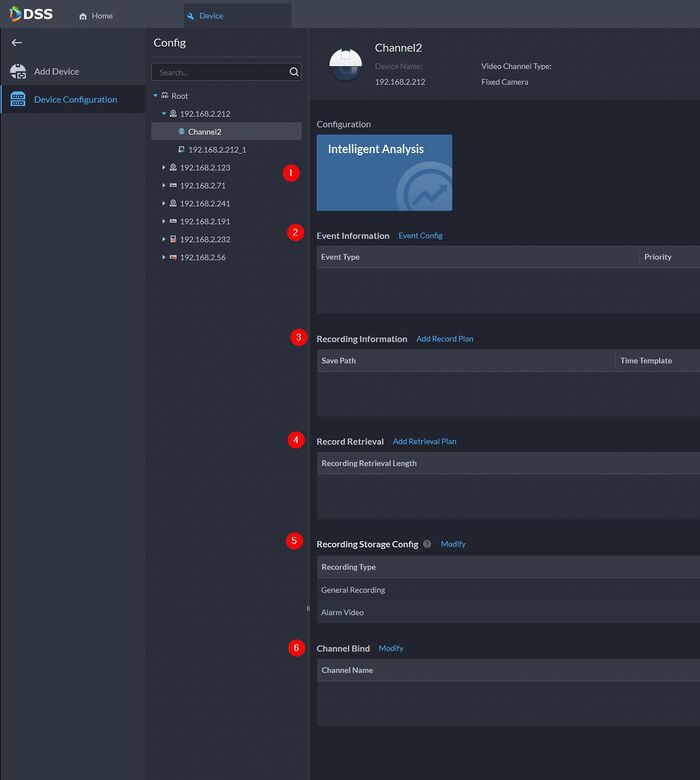

DSS Pro Device Configuration - 3.jpg

Feature Description
① Configuration Configure Smart Plan / Intelligent Analysis settings for the device*
② Event Information
③ Recording Information Add or remove record plans for devices. Click here for how-to setup Recording Schedules.
④ Record Retrieval Configure backup so videos on the device can be automatically uploaded to DSS for redundancy. Click here for instructions.
⑤ Recording Storage Config Configure the video retention period for the device's recorded video. Click here for instructions.
⑥ Channel Bind Bind a video channel with an alarm input channel, ANPR channel, access control, or another video channel to view associated video when an event occurs. Click here for instructions.

* For supported devices

Add Retrieval Plan

https://dahuawiki.com/DSS/V8/DSS_Pro/Instruction/Device_Configuration#Add_Retrieval_Plan

Recording Storage Config

Channel Bind

> Return to DSS Pro instructions
