USA/NVR/Pro/DHI NVR58A32 4KS2
DHI-NVR58A32-4KS2
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
| Coming Soon |
Coming Soon |
Build Date: 11-15-2022
|
| Series: | Pro |
| Compression: | H.264/MJPEG |
| Channels: | 32 |
| Input Bandwidth: | 320Mbps |
| Record Bandwidth: | 320Mbps |
| Max Decode: | 4ch@4K, 16ch@1080P |
| Video Output: | 2 HDMI, VGA |
| HDD: | 8x6TB |
| RAID: | 0/1/5/6/10 |
| eSATA: | 1 |
| Mini SAS: | 0 |
| Audio In: | 1 |
| Audio Out: | 1 |
| Alarm In: | 16 |
| Alarm Out: | 6 |
| Network: | 2 Gigabit Ports |
| POE: | 0 |
| USB: | 2 USB 3.0, 2 USB 2.0 |
| Power: | AC100V~240V, 50~60Hz, Redundant<40W(No HDD) |
| IVS: | Yes |
| Fisheye Dewarp: | Yes |
| POS: | Yes |
| Firmware: | URL |
Features
- Up to 16/32/64 channel IPC input through network
- H.265/H.264/MJPEG/MPEG4 codec decoding
- Max 320Mbps incoming bandwidth
- Up to 12Mp resolution preview&playback
- Max 16ch@1080P H.265/H.264 decoding
- 2HDMI/VGA simultaneous video output
- 4/8/16 channel synchronous realtime playback, GRID interface
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
- ONVIF Version 2.4 conformance
- 3D intelligent positioning with Dahua PTZ camera
- Support 8 SATA HDDs up to 48TB, 4 USB(2 USB3.0, 2USB2.0)
- Support RAID 0/1/5/6/10
- No PoE ports for this model
- Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)
Compression
Intelligent Features
Abandoned/Missing
Tripwire
Intrusion
Face Detect
People Counting
Heatmap
Auto Track
Smart Track
Interfaces
|
|
|
|
|---|---|---|---|
| SystemUI New | WebUI New | SmartPSS | DSS Express S |
Front Panel
NVR42-4K/42-8P-4K/44-4K/48-4K Series
The NVR42-4K/42-8P-4K/44-4K series front panel is shown below:
The NVR48-4K series front panel is shown below.
|
Icon |
Name |
Function |
|
STATUS |
Status indicator light |
The blue light is on when the device is malfunction. |
|
HDD |
HDD status indicator light |
The blue light is on when the HDD is malfunction. |
|
NET |
Network status indicator light |
The blue light is on when the network connection is abnormal. |
|
POWER |
Power status indicator light |
The blue light is on when the power connection is OK. |
|
USB2.0 port |
Connect to peripheral USB 2.0 storage device, mouse, burner and etc. |
Back Panel
NVR48/48-16P Series

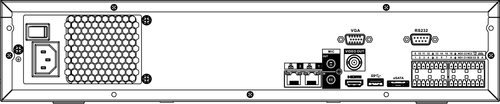

The NVR48 series rear panel is shown as below.
The NVR48-16P series rear panel is shown as below.
Specifications
| Model | DHI-NVR58A16-4KS2 DHI-NVR58A16-16P-4KS2 |
DHI-NVR58A32-4KS2 DHI-NVR58A32-16P-4KS2 |
DHI-NVR58A64-4KS2 DHI-NVR58A64-16P-4KS2 | ||
| System | |||||
| Main Processor | Quad-core embedded processor | ||||
| Operating System | Embedded LINUX | ||||
| Video& Audio | |||||
| IP Camera Input | 16 channel | 32 channel | 64 channel | ||
| Two-way Talk | 1 channel Input, 1 channel Output, RCA | ||||
| Display | |||||
| Interface | 2 HDMI (1 HDMI up to 3840x2160), 1 VGA | ||||
| Resolution | 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | ||||
| Display Split | 1/4/8/9/16 | 1/4/8/9/16/25/36 | 1/4/8/9/16/25/36 | ||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
| Recording | |||||
| Compression | H.265/H.264/MJPEG/MPEG4 | ||||
| Resolution | 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. | ||||
| Record Bit Rate | 320Mbps | ||||
| Bit Rate | 16kbps~ 20Mbps per channel | ||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | ||||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||
| Video Detection & Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | ||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Alarm Input | 16 channel | ||||
| Relay Output | 6 channel | ||||
| Playback & Backup | |||||
| Sync Playback | 1/4/8 | 1/4/8/16 | 1/4/8/16 | ||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | ||||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device | ||||
| Network | |||||
| Ethernet | 2 RJ-45 port (10/100/1000Mbps) | ||||
| 1 RJ-45 port (10/100/1000Mbps)(for -16P model) | |||||
| PoE | 16 ports (IEEE802.3af/at) (for -16P model) | ||||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android | ||||
| Storage | |||||
| Internal HDD | 8 SATA ports, up to 48TB | ||||
| HDD Mode | Raid 0/1/5/6/10 | ||||
| External HDD | 1 eSATA port | ||||
| Auxiliary Interface | |||||
| USB | 4 ports (2 Rear USB3.0, 2 Front USB2.0) | ||||
| RS232 | 1 port, For PC communication&Keyboard | ||||
| General | |||||
| Power Supply | Single, AC 100~240V, 50/60 Hz | ||||
| Power Consumption | NVR: 16.7W for non-PoE model(without HDD) 17.5W for PoE model(without HDD) | ||||
| PoE: Max 25.5W for single port(for -16P model), 150W in total | |||||
| Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa | ||||
| Dimension (W×D×H) |
2U, 440mm×454mm×95mm | ||||
| Weight | 6.55KG for non-PoE model(without HDD) 7KG for PoE model(without HDD) | ||||
