DHI-HCVR72A16A-S3

DHI-HCVR72A16A-S3
Specifications Quick Start Guide Manual Firmware

Build Date: 06-01-2018

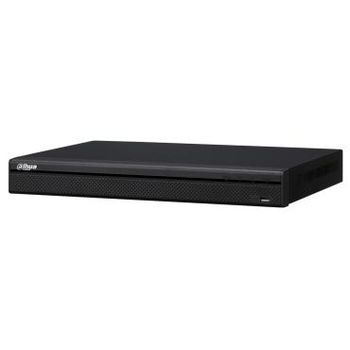

DHI-HCVR72A16A-S3 HCVR72A16AS3.jpg
Series: Pro
Compatible Video: HDCVI/CVBS (Auto-detect)
HD-CVI/Analog Channels: 16
IP Channels: 24
Video Compression: H.264+ / H.264
HD-CVI/Analog Recording
Recording Resolutions:
5 MP, 4 MP, 3 MP, 1080p, 1080N, 720p
IP Recording Resolutions: 5 MP, 4 MP, 3 MP, 1080p, 1080N, 720p
Input Bandwidth: 96Mbps
Video Output: 1 HDMI, 1 VGA
HDD: 2 HDD, 12 TB
eSATA: 0
Audio In: 4 BNC, 1 RCA
Audio Out: 1 BNC, 1 RCA
Alarm In: 16
Alarm Out: 3
Network: 1 Gigabit Port
USB: 1 USB 2.0 , 1 USB 3.0
Power: 12 VDC, 4 A, 50/60 Hz
<15W (No HDD)
IVS: Yes (1 Channel)
POS: No
Spot Out/ Video Matrix: Yes


Compression


Interfaces

SystemUI Old WebUI Old SmartPSS DSS Express S
SystemUI Old WebUI Old SmartPSS DSS Express S

Front Panel

Front Panel

Error creating thumbnail: Unable to save thumbnail to destination

Back Panel

HCVR5216A/HCVR7208A Series

HCVR5216A HCVR7208A Series Back Panel.jpg HCVR5216A Specs1.jpg HCVR5216A Specs2.jpg


Specifications
