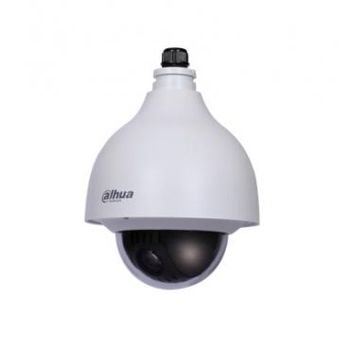

DH-SD40A212TN-HNI
| Specifications | Quick Start Guide | Manual | Firmware | PTZ Firmware |
|---|---|---|---|---|
Build Date: 1-16-2018
|
Build Date: 01-09-2018
|
| Series: | Lite |
| Body: | PTZ |
| Image Sensor: | 1/2.7 in. CMOS |
| Resolution: | 2 MP, 1920(H) x 1080(V) |
| Angle of View: | Horizontal: 59.3° to 5.2° |
| Lens Type: | Varifocal |
| Focal Length: | 5.1 mm to 61.2 mm |
| Optical Zoom: | 12x |
| Min. Illumination: | Color: 0.05 Lux at F1.6; B/W: 0.005 Lux at F1.6 |
| Day/Night: | Auto (ICR), Color, B/W |
| Max. IR Range: | - |
| WDR: | 120dB |
| Video Compression: | Smart H.264+, H.264, MJPEG |
| Audio Compression: | G.711a, G.711u( 32 kbps), PCM( 128 kbps) |
| Frame Rate: | m 1080p, D1 at 30 fps, 720p at 60 fps |
| Multi-Streaming: | 3 Streams |
| Pan/Tilt Range: | Pan: 0° to 360° endless Tilt: -2° to 90°, Auto Flip 180° |
| Preset Speed: | 300 Presets Pan: 300° /s Tilt: 200° /s |
| IVS: | Motion, Tripwire, Intrusion, Abandoned/Missing Object |
| ONVIF: | Yes |
| Audio In: | One (1) Channel |
| Audio Out: | One (1) Channel |
| Memory Slot: | - |
| Alarm In: | Two (2) Channels |
| Alarm Out: | One (1) Channel |
| IP Rating: | 66 |
| IK Rating: | 10 |
| Operating Temp: | –40° C to +70° C (–40° F to +158° F), Less than 90% RH |
| Power: | 24 VAC, 1.5 A (±10%), PoE+(802.3at) < 22 W |
| ePoE: | No |
Features
- 1/2.7-in. 2 MP CMOS Imager
- Powerful 12x Optical Zoom
- Triple-stream Encoding
- Maximum 30 fps at 1080p, 30/60 fps at 720p
- ArcticPro Series Camera - Operational down to –40° C (–40° F)
- IP66 Ingress Protection and IK10 Vandal Resistance
- Intelligent Video Analysis (IVS)
- Supports PoE+
- Five-year Warranty
CAD Images
compression
Intelligent Features
Abandoned/Missing
Tripwire
Intrusion
Interfaces
|
|
|
|---|---|---|
| WebUI Old | SmartPSS | DSS Express S |
FOV
Camera Height: 10m
Focal Length: 5.1mm
Target Horizontal Dist: 88m
Camera Height: 10m
Focal Length: 61.2mm
Target Horizontal Dist: 1062.5m
Compatible Accessories
Accessories Combo 1
PFB300S
PFA110
Accessories Combo 2
PFB300C
PFA110
Accessories Combo 3
PFA120
PFB300S
PFA110
Accessories Combo 4
PFA140
PFB300S
PFA110
Accessories Combo 5
PFA150
PFB300S
PFA110
Accessories Combo 6
PFA150
PFB300C
PFA110
Accessories Combo 7
PFA150
PFA120
PFB300S
PFA110
Accessories Combo 8
PFA150
PFA140
PFB300S
PFA110
Accessories Combo 9
PFA151
PFB300S
PFA110
Accessories Combo 10
PFA151
PFB300C
PFA110
Accessories Combo 11
PFA151
PFA120
PFB300S
PFA110
Accessories Combo 12
PFA151
PFA140
PFB300S
PFA110
Accessories Combo 13
PFA152 v2
PFB302S
PFA110
Accessories Combo 14
PFA110
PFB303S
Optional Accessories
PFA112
PFA113
Reset Button
