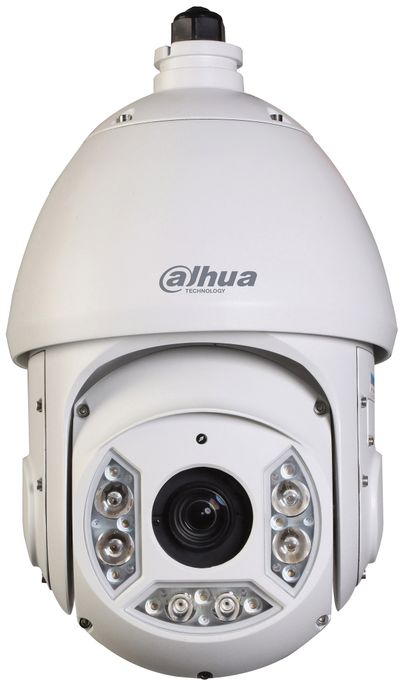

6C230IC

Features

• 1/2.8-in. 2 MP STARVIS™ Progressive-scan CMOS Sensor
• Powerful 30x Optical Zoom
• Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
• Starlight Technology for Ultra-low Light Sensitivity
• 1080p at 30 fps or 720p at 30/60 fps, Maximum Resolution
• True Wide Dynamic Range (120 dB), 3D DNR
• Maximum IR Distance up to 150 m (492 ft)
• IP66 Ingress Protection
• Designed for Extreme Temperature Environments
• Five-year Warranty (for products sold through an authorized Dahua Dealer.)

Specifications

Camera
Image Sensor	1/2.8 in. STARVIS™ CMOS
Effective Pixels	1920(H) x 1080(V), 2 MP
Scanning System	Progressive
Electronic Shutter Speed	1/3 s to 1/300,000 s
Minimum Illumination	Color: 0.005 lx at F1.6
	0 lux at F1.6 with IR on
S/N Ratio	More than 55dB
IR Distance	Distance up to 150 m (492.13 ft)
IR On/Off Control	Auto/Manual
IR LEDs	Six (6)
Lens
Focal Length	4.5 mm to 135 mm
Maximum Aperture	F1.6 to F5.0
Horizontal Angle of View	Horizontal: 2.4° to 67.8°
Optical Zoom	30x
Focus Control	Auto, Manual
Close Focus Distance	100 mm to 1000 mm (3.94 in. to 39.37 in.)
DORI Distance1
	Detect (8 ppf): 1862 m (6109 ft)
	Observe (19 ppf): 744 m (2441 ft)
	Recognize (38 ppf): 372 m (1220 ft)
	Identify (76 ppf): 186 m (610 ft)
PTZ
Pan/Tilt Range	Pan: 0° to 360° endless
	Tilt: -15° to 90°
	Auto Flip 180°
Manual Control Speed	Pan: 0.1° to 160° /s;
	Tilt: 0.1° to 120° /s
Preset Speed	Pan: 240° /s
	Tilt: 200° /s
Presets	300
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup	Human-oriented Focal Length and Speed Adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
Protocol	DH-SD, Pelco-P/D (Auto recognition)
Video
Resolution	1080p (1920 × 1080)
	720p (1280 × 720)
Frame Rate	1080p at 30 fps or 720p at 30/60 fps
Video Output	One (1) Channel, BNC  High-definition Video Output (HDCVI, AHD, TVI) or  CVBS Standard Definition Video Output (switchable)
Video Transmission2
RG-59/U Coax	720p: 500 m  (1640.42 ft) 1080p: 400 m  (1312.34 ft)
RG-6/U Coax	720p: 800 m  (2624.67 ft) 1080p: 600 m  (1968.50 ft)
CAT 6 UTP (balun required)	720p: 380 m  (1246.72 ft) 1080p: 380 m  (1246.72 ft)
Day/Night	Auto (ICR), Color, B/W
OSD Menu	English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish
Advanced Features	BLC, HLC, WDR (120 dB)
Backlight Compensation	Auto, ATW, Indoor, Outdoor, Manual
White Balance	Auto, Manual
Gain Control	Ultra DNR (2D/3D)
Noise Reduction	Defog
Digital Zoom	16x
Flip	180°
Privacy Masking	Up to 24 areas
Certifications
CE	EN 55032
	EN 55024
	EN 50130-4
UL	UL60950-1 + CAN/CSA C22.2, No.60950-1
Electromagnetic Compatibility (EMC)	FCC Part 15 Subpart B
	ANSI C63.4-2014
Interface
Video Output	Output: One (1) BNC
Audio Input	Input: One (1) Channel
RS485	One (1) Port
Alarm	Input: Two (2) Channels
	Output: One (1) Channel
Electrical
Power Supply	24 VAC, 3 A (±10%)
Power Consumption	13 W, 23 W with IR on
Environmental
Operating Conditions	-40° C to 60° C (-40° F to +140° F),
	with built-in heater, Less than 90% RH
Ingress Protection	IP66
Construction
Casing	Metal
Dimensions	204.70 mm x 359.90 mm (8.06 in. x 14.17 in.)
Net Weight	7.80 kg (17.20 lb)
Gross Weight	8.30 kg (18.30 lb)
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 2. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
