USA/IPCamera/PTZ/Pro/DH SD6CA230TN HNI

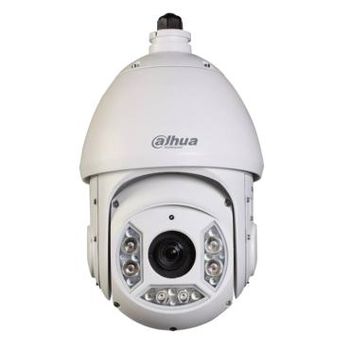

DH-SD6CA230TN-HNI
| Specifications | Quick Start Guide | Manual | Firmware | PTZ Firmware |
|---|---|---|---|---|
Build Date: 6-1-2017
|
Build Date: 11-21-2015
|
| Series: | Pro |
| Body: | PTZ |
| Image Sensor: | 1/2.8" Exmor CMOS |
| Resolution: | 1944(H) x 1092(V) |
| Angle of View: | Horizontal: 67.8° to 2.4° |
| Lens Type: | Varifocal |
| Focal Length: | 4.5 mm to 135 mm |
| Optical Zoom: | 30x |
| Min. Illumination: | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on) |
| Day/Night: | Auto (ICR), Color, B/W |
| Max. IR Range: | Up to 100m (328ft) |
| WDR: | Digital WDR |
| Video Compression: | H.264, MJPEG |
| Audio Compression: | G.711a / G.711Mu(32kbps)/ PCM(128kbps) |
| Frame Rate: | 1080P/ D1 (1 ~ 30fps), 720P(1~60fps) |
| Multi-Streaming: | 3 Streams |
| Pan/Tilt Range: | Pan: 0° to 360° Endless Tilt: -15° to 90°, Auto Flip 180° |
| Preset Speed: | 300 Presets Pan: 240° /s Tilt: 200° /s |
| IVS: | Motion, Tripwire, Intrusion, Abandoned/Missing Object, Facial Detection, Auto-tracking |
| ONVIF: | Yes |
| Audio In: | One (1) Channel |
| Audio Out: | One (1) Channel |
| Memory Slot: | Micro SD Slot, maximum 128 GB |
| Alarm In: | Two (2) Channels |
| Alarm Out: | One (1) Channel |
| IP Rating: | 66 |
| IK Rating: | - |
| Operating Temp: | –40° C to +60° C (–40° F to +140° F), Less than 90% RH |
| Power: | 24V AC ±25%, Hi-PoE < 26 W |
| ePoE: | No |
EOL Date
- December 31, 2017
Suggested Replacement
- 6CE230UNI(2MP, H.265, Coming Nov 2017)
CAD Images
Compression
Interfaces
|
|
|
|---|---|---|
| WebUI Old | SmartPSS | DSS Express S |
FOV
Camera Height: 10m
Focal Length: 4.5mm
Target Horizontal Dist: 80.2m
Camera Height: 10m
Focal Length: 135mm
Target Horizontal Dist: 2424.5m
Compatible Accessories
Accessories Combo 1
PFB303W
PFA114
Accessories Combo 2
PFB300C
PFA114
Accessories Combo 3
PFA120
PFB303W
PFA114
Accessories Combo 4
PFA140
PFB303W
PFA114
Accessories Combo 5
PFA150
PFB303W
PFA114
Accessories Combo 6
PFA150
PFB300C
PFA114
Accessories Combo 7
PFA150
PFA120
PFB303W
PFA114
Accessories Combo 8
PFA150
PFA140
PFB303W
PFA114
Accessories Combo 9
PFA151
PFB303W
PFA114
Accessories Combo 10
PFA151
PFB300C
PFA114
Accessories Combo 11
PFA151
PFA120
PFB303W
PFA114
Accessories Combo 12
PFA151
PFA140
PFB303W
PFA114
Accessories Combo 13
PFA114
PFB303S
Optional Accessories
PFA112
PFA113
Reset Button
