Accessories/Wire/PFM921
Contents

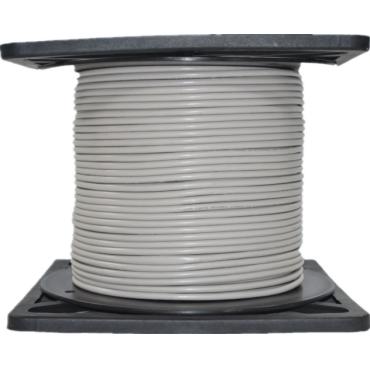

PFM922
Features
- Bare stranded copper conductor
- 305m UTP CAT6
Compatible Body Type
- X
Compatible IP Cameras
- X
Compatible HD-CVI Cameras
- X
Specifications
| Model | PFM921 | |
| Conductor | Material | Bare copper(BC) |
| Composition | 1/0.56 | |
| Wire gauge | 23AWG*4P | |
| Insulation | Material | HDPE |
| Min. average thickness | 0.2mm | |
| Diameter | 1.0+/-0.05mm | |
| Color(4 Pairs) | Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown | |
| Lay of twisted conductors | 160mm | |
| Jacket | Material | PVC(65P) |
| Min. average thickness | 0.65mm | |
| Diameter | 6.5+/-0.1mm | |
| Color | Gray | |
| Length | 305m | |
| Max. DC resistance of single conductor | 6.58Ω/100m | |
| Max. unblance rate of line pairs' direct current resistance | 2.5% | |
| Min. insulation resistance | 5000MΩ•Km | |
| Max. mutual capacitance | 5.6NF/100m | |
| Max. attenuation | 19.8(dB/100m, 100MHz) | |
| General | Rated voltage | 300V |
| Bandwidth | 250MHz | |
| Carried standard | TIA/EIA-568B | |
| Working temperature | ||
| Packaging length | 305m trolley case packaging | |
| Weight(with packaging) | 13.0Kg | |
| Packaging dimension | 335*265*350mm | |
