Add DB11 To Dahua Recorder

Description

These instructions will show you how to add a DB11 to a Dahua recorder.

Prerequisites

Not Working Functions

  • No ONVIF
  • No 3rd Party Support for 3rd Party VMS, Recorders, or Video Intercom devices
  • No RTSP URL
  • No PIR Recording
  • No Calls to SmartPSS
  • No Calls to Dahua Recorder
  • Not compatible with Dahua Video Intercom devices

Instructions

Icon for type SystemUI Old.pngSystemUI Old

==Description==

These instructions will show you how to add a DB11 to a Dahua recorder at the SystemUI with OldGUI

Prerequisites

Video Instructions

Step By Step Instructions

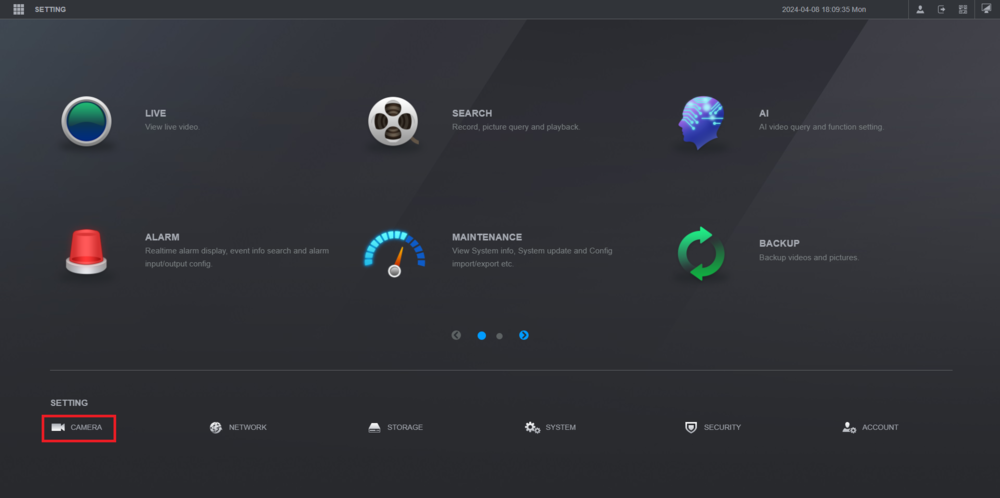

1. From the Main Menu

Click Camera

Add DB11 Dahua Recorder - SystemUI Old - 1.jpg

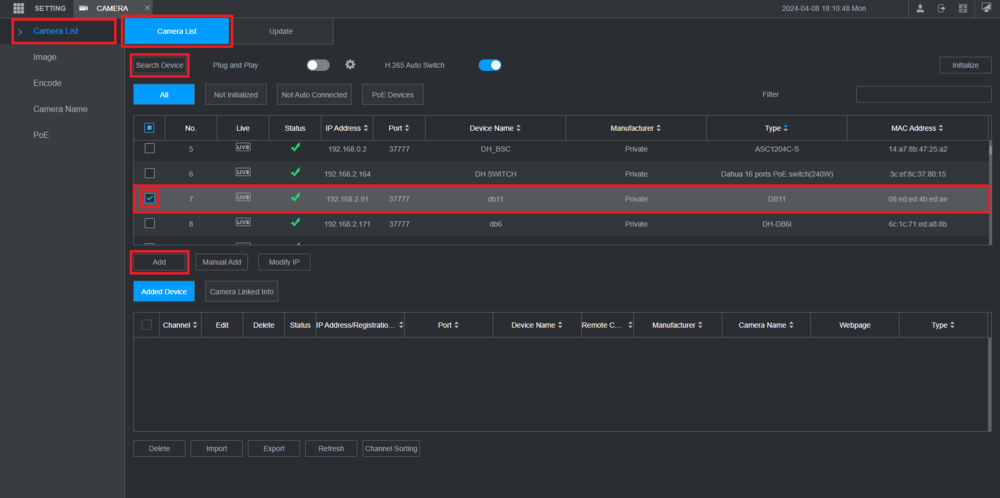

2. Under Registration

Click Device Search

The recorder will scan the local network for devices

Add DB11 Dahua Recorder - SystemUI Old - 2.jpg

3. Find the DB11 in the list

Check the box next to the device in the list

Click Add

Add DB11 Dahua Recorder - SystemUI Old - 3.jpg

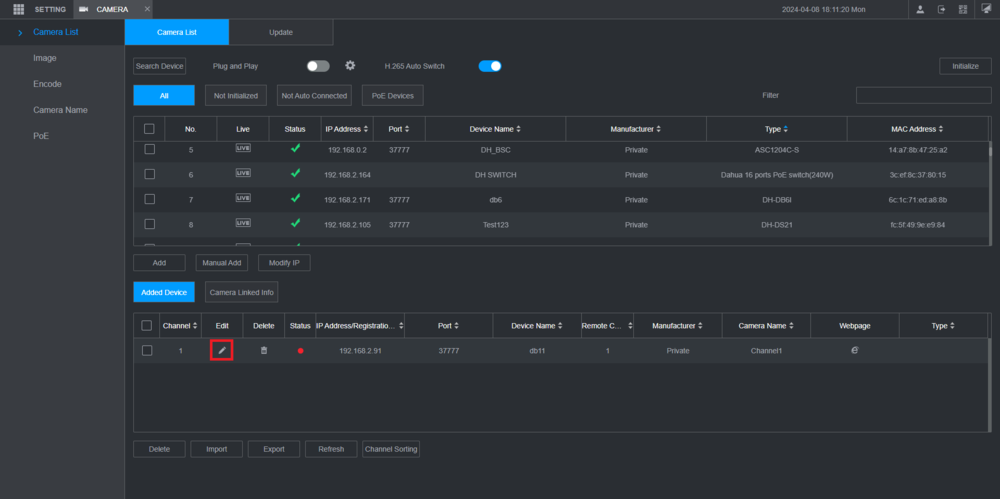

4. The DB11 will move to Added Device

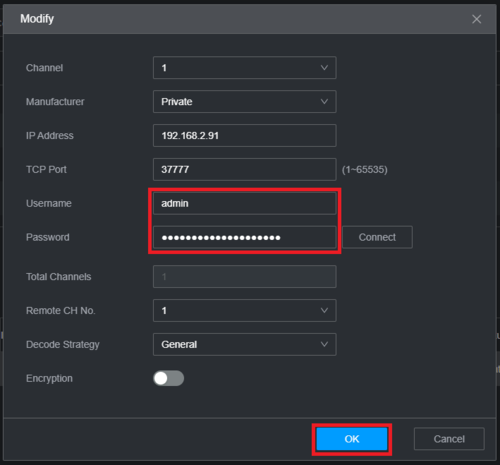

Click the Pencil icon under Modify to change any settings from the DB11, such as Password or Port information (if required)

Add DB11 Dahua Recorder - SystemUI Old - 4.jpg

5. Once the DB11 is successfully connected you will see a green light under status and the DB11 video feed will appear in live view

Add DB11 Dahua Recorder - SystemUI Old - 5.jpg

Icon for type SystemUI New.pngSystemUI New

==Description==

These instructions will show you how to add a DB11 to a Dahua recorder at the SystemUI with NewGUI

Prerequisites

Video Instructions

Step By Step Instructions

1. From the Main Menu

Click Camera

Add DB11 Dahua Recorder - SystemUI NewGUI - 1.jpg

2. Under Registration

Click Search

The recorder will scan the local network for devices

Add DB11 Dahua Recorder - SystemUI NewGUI - 2.jpg

3. Find the DB11 in the list

Check the box next to the device in the list

Click Add

Add DB11 Dahua Recorder - SystemUI NewGUI - 3.jpg

4. The DB11 will move to Added Device

Click the Pencil icon under Modify to change any settings form the DB11, such as Password or Port information (if required)

Add DB11 Dahua Recorder - SystemUI NewGUI - 4.jpg

5. Once the DB11 is successfully connected you will see a green light under status

Add DB11 Dahua Recorder - SystemUI NewGUI - 5.jpg

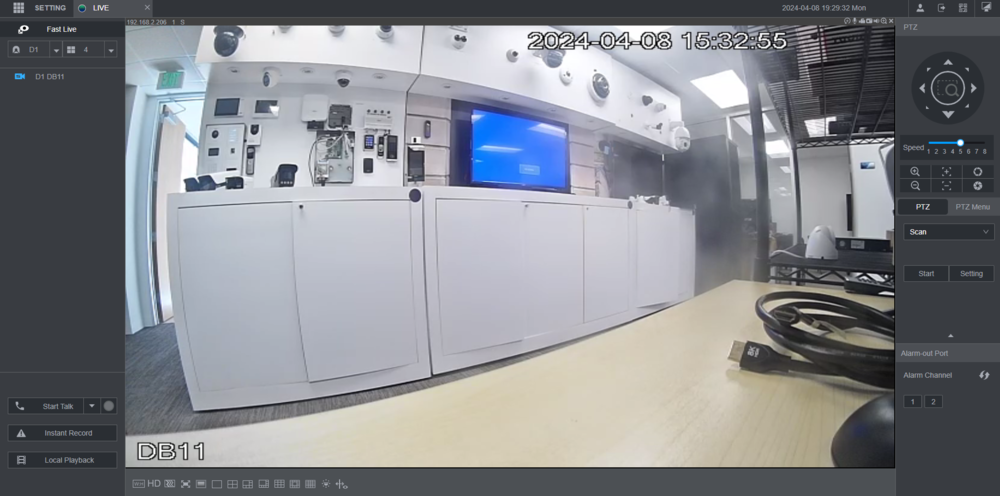

6. The DB11 video feed will appear in Live View

Add DB11 Dahua Recorder - SystemUI NewGUI - 6.jpg

Icon for type WebUI Old.pngWebUI Old

==Description==

These instructions will show you how to add a DB11 to a Dahua recorder at the WebUI wwith OldGUI

Prerequisites

Video Instructions

Step By Step Instructions

1. From the Main Menu of the WebUI

Click Setup

Add DB11 Dahua Recorder - WebUI Old - 1.jpg

2. Under Registration

Click Device Search

The recorder will scan the local network for devices

Add DB11 Dahua Recorder - WebUI Old - 2.jpg

3. Find the DB11 in the list

Check the box next to the device in the list

Click Add

Add DB11 Dahua Recorder - WebUI Old - 3.jpg

4. The DB11 will move to Added Device

Click the Pencil icon under Modify to change any settings form the DB11, such as Password or Port information (if required)

Add DB11 Dahua Recorder - WebUI Old - 4.jpg

5. Once the DB11 is successfully connected you will see a green light under status

Add DB11 Dahua Recorder - WebUI Old - 5.jpg

6. The DB11 video feed will appear in live view

Add DB11 Dahua Recorder - WebUI Old - 6.jpg

Icon for type WebUI New.pngWebUI New

==Description==

These instructions will show you how to add a DB11 to a Dahua recorder at the WebUI with NewUI

Prerequisites

Video Instructions

Step By Step Instructions

1. From the Main Menu of the WebUI

Click Management

Click Camera

Add DB11 Dahua Recorder - WebUI New - 1.jpg

2. Under Registration

Click Device Search

The recorder will scan the local network for devices

Add DB11 Dahua Recorder - WebUI New - 2.jpg

3. If the DB11 does not appear you can add it manually

Click Manual Add

Add DB11 Dahua Recorder - WebUI New - 3.jpg

4. The Manual Add interface will appear

Enter the corect information for the DB11

  • IP Address
  • TCP Port
  • Username
  • Password

Click OK

Add DB11 Dahua Recorder - WebUI New - 4.jpg

5. The DB11 will move to Added Device

Click the Pencil icon under Modify to change any settings form the DB11, such as Password or Port information (if required)

Add DB11 Dahua Recorder - WebUI New - 5.jpg

6. Once the DB11 is successfully connected you will see a green light under status

Add DB11 Dahua Recorder - WebUI New - 6.jpg

7. The DB11 video feed will appear in live view

Add DB11 Dahua Recorder - WebUI New - 7.jpg

Icon for type SmartPSS.pngSmartPSS

==Description==

These instructions will show you how to add a DB11 to a Dahua recorder in SmartPSS

Prerequisites

Video Instructions

Step By Step Instructions

1. From the Main Menu of SmartPSS

Click Device CFG

Add DB11 Dahua Recorder - SmartPSS - 1.jpg

2. Select the recorder from the device tree on the left

Add DB11 Dahua Recorder - SmartPSS - 2.jpg

3. Click to expand Camera

Add DB11 Dahua Recorder - SmartPSS - 3.jpg

4. Click Remote Device

Add DB11 Dahua Recorder - SmartPSS - 4.jpg

5. A list of devices on the network local to the recorder will appear

Add DB11 Dahua Recorder - SmartPSS - 5.jpg

6. Find the DB11 in the list

Check the box next to the device in the list

Click Add Device

Add DB11 Dahua Recorder - SmartPSS - 6.jpg

7. The DB11 will move to Added Device

Add DB11 Dahua Recorder - SmartPSS - 7.jpg

8. Double click the device in the list to modify any settings for the camera

Add DB11 Dahua Recorder - SmartPSS - 7-1.jpg

9. Confirm the correct information for the DB11

  • IP Address
  • TCP Port
  • Username
  • Password

Click OK

Add DB11 Dahua Recorder - SmartPSS - 7-2.jpg

10. Click Save

Add DB11 Dahua Recorder - SmartPSS - 8.jpg

11. The DB11 will appear in the device list under the recorder and can be viewed in Live View

Add DB11 Dahua Recorder - SmartPSS - 9.jpg
