Modify PIR Detection Zone

Description

How to setup PIR zone for motion detection

Prerequisites

Video Instructions

Step by Step Instructions

1. Once iDMSS or gDMSS is opened, click on the "Home" icon located on the top left corner.
1. Click Home Button.PNG

2. Click on "Device" located on the bottom.
2. Click Device Button.PNG

3. Choose the DB11 device from the list.
3. Choose DB11 Device From List.PNG

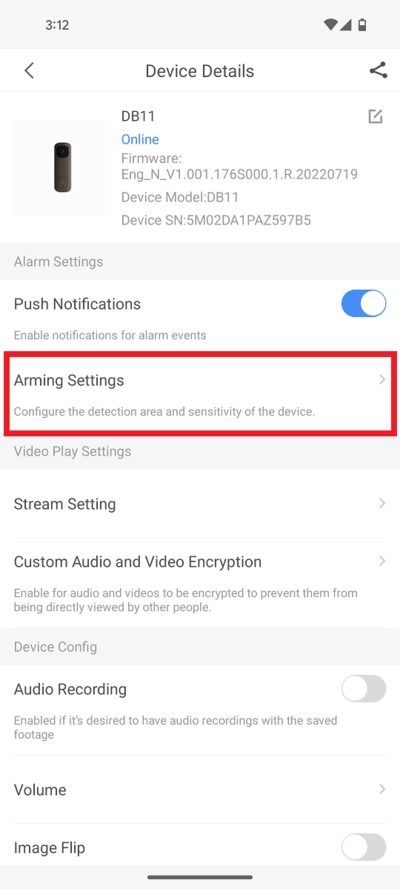

4. Click "Motion Detection Setting"
4. Motion Detection Setting.PNG

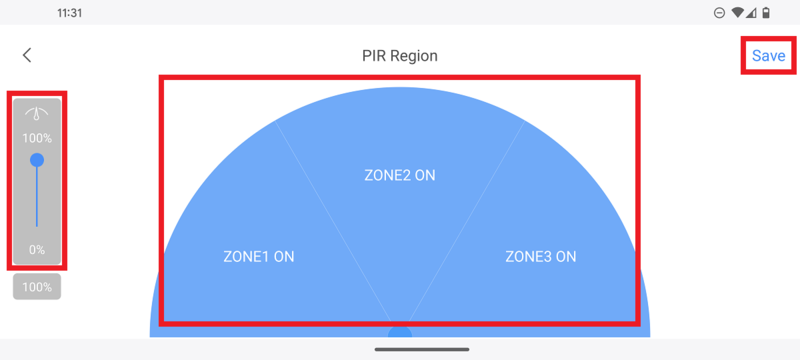

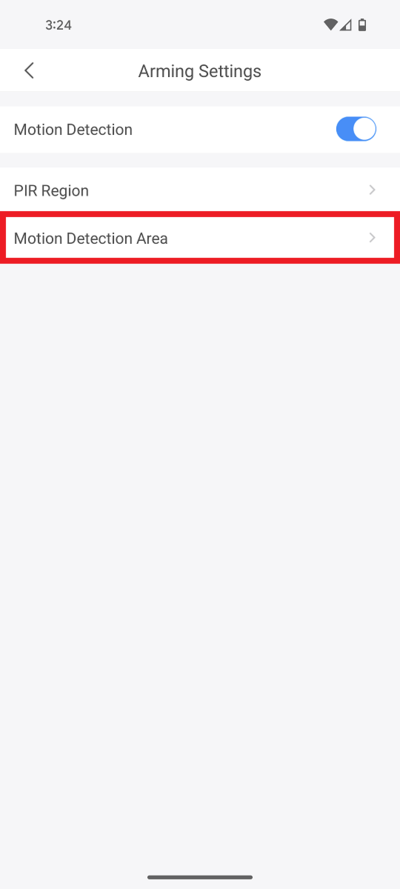

5. Enable "Motion Detection" if it's not already enabled. Click on "PIR Region" to set the the percentage region, and click "Save" icon when done.
5. Enable Motion Detection.PNG 6. Set PIR Percentage.PNG
